RF Surge Arrestor

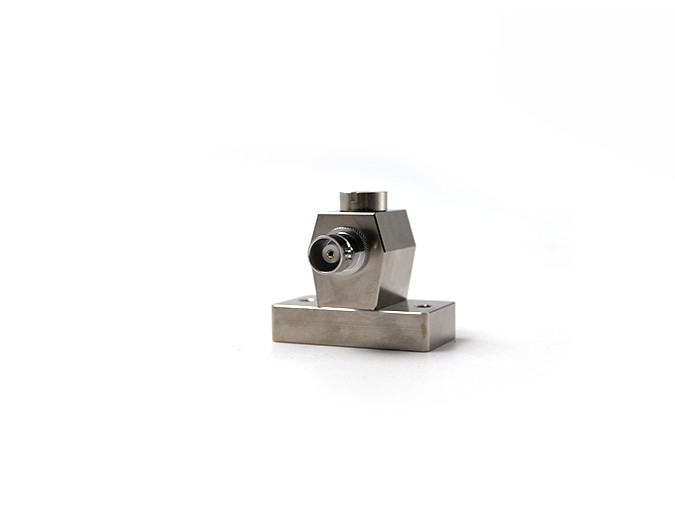

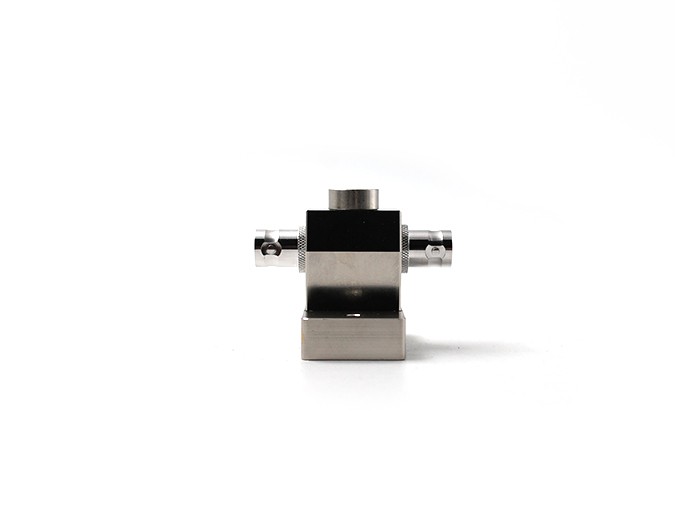

BNC female to female Surge Arrestor
Model: BLQ/BNC-KK
Product Introduction
Lightning strike by lightning means a test to the radio equipment. The Voltage of Surge maybe as high as the dozens kilovolt/meter in the instant microseconds, this will bring the enormous load to the whole system and the damage to the equipment, The Arrestors we provide will be worked as switching voltage to protect the communication base station.Correct selection of products is a guarantee to the high-efficient system.
Detailed Information
BNC female to female Surge Arrestor
Teruilai P/N:BLQ/BNC-KK Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Initial Discharge voltage | 230V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧10000MΩ | |
| Rated Power | 200W | |
| Insertion Loss | ≦0.4dB | |
| VSWR | ≦1.35 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃~+85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Coupling nut | Brass | Nickel plated |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
