RF Surge Arrestor

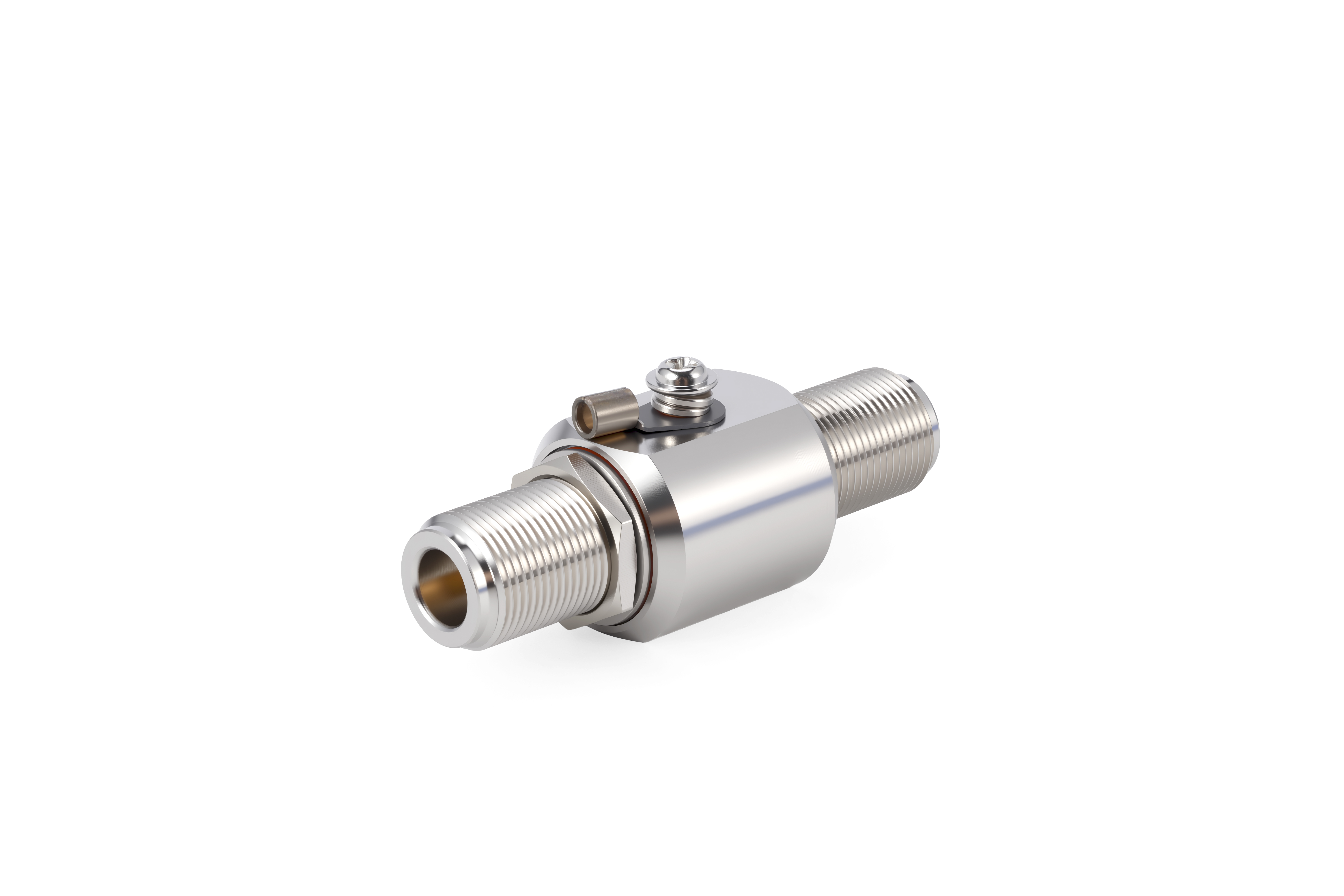

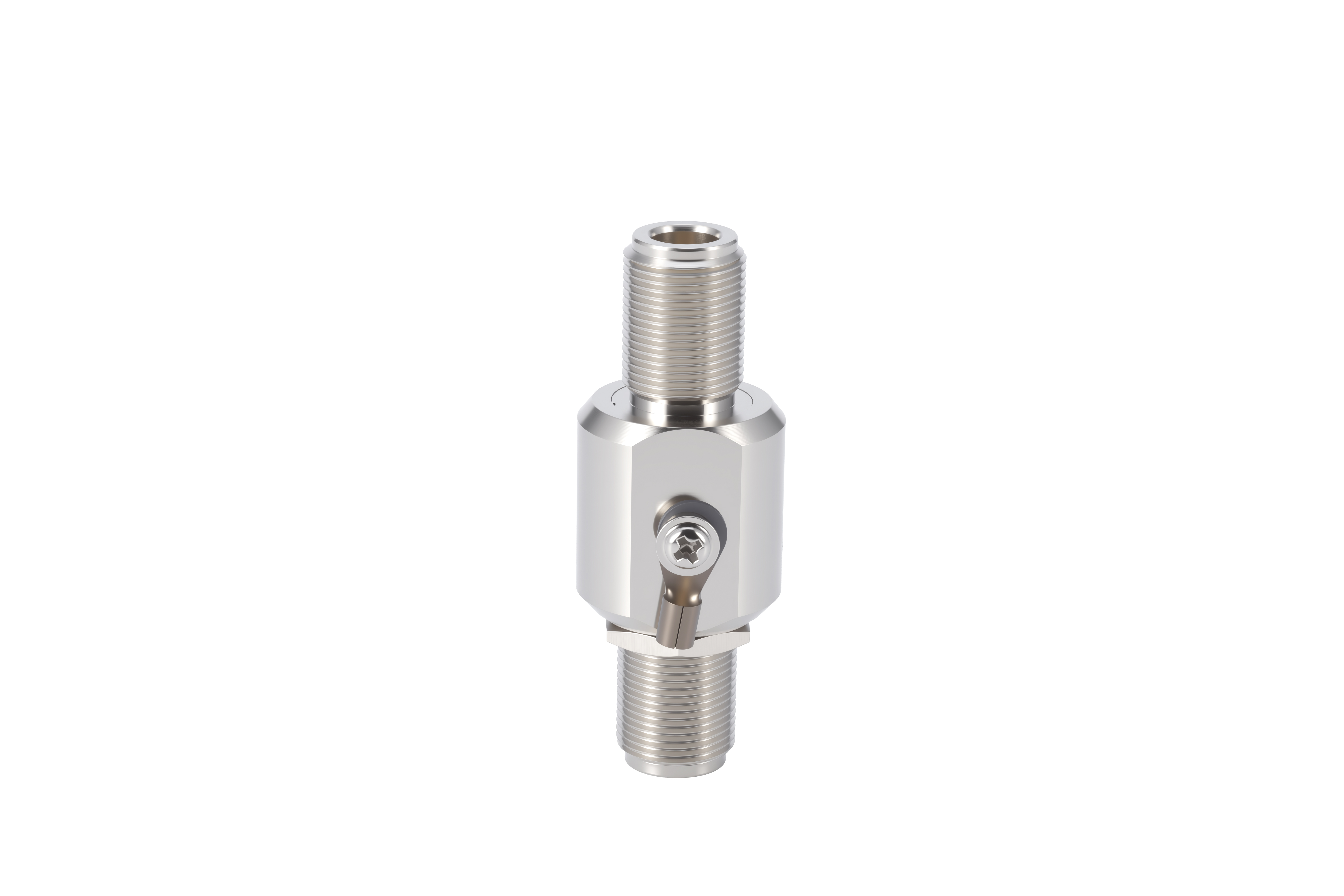

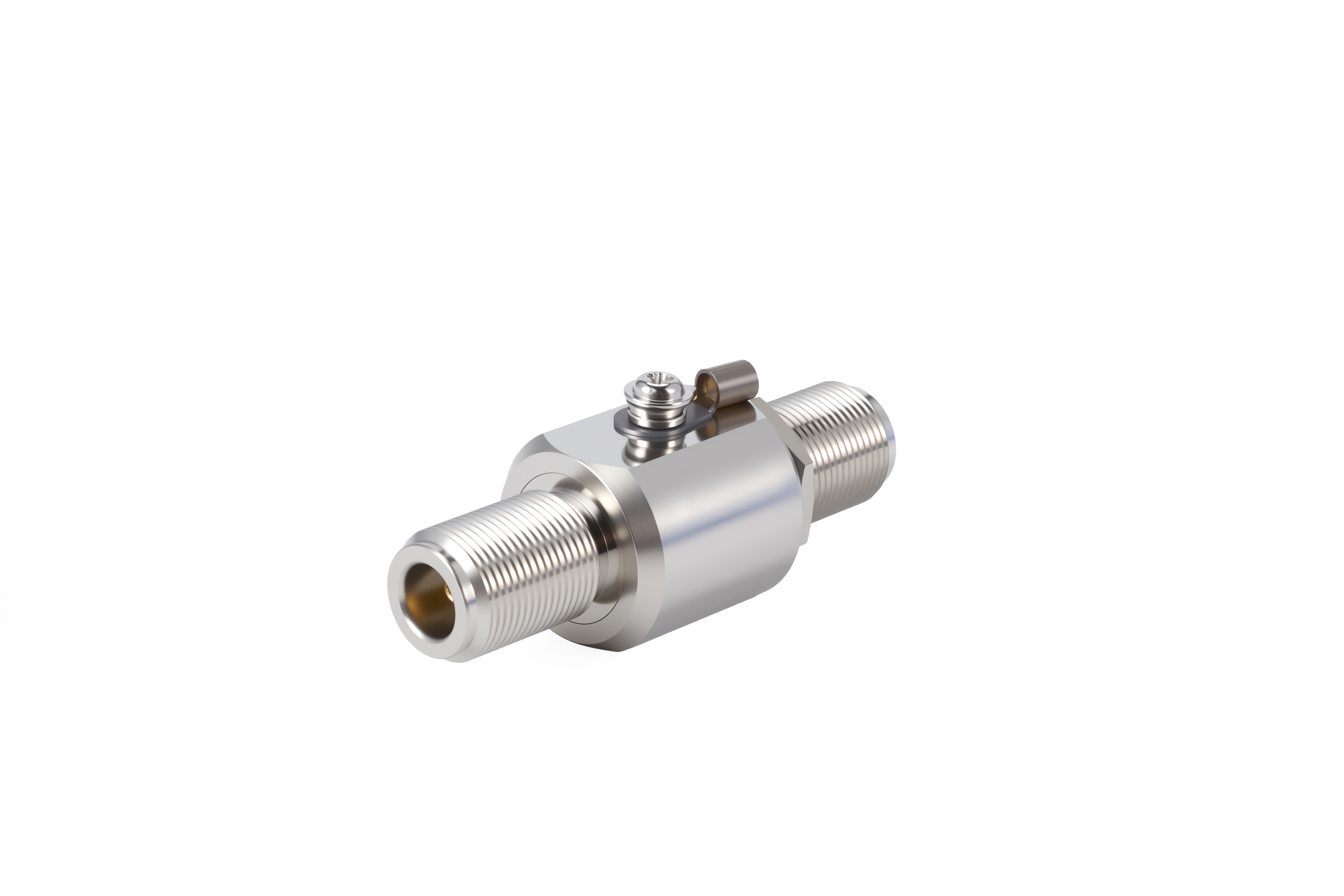

N Female to Female Bulkhead Surge Arrestor
Model: N-KKYB
Product Introduction
Lightning strike by lightning means a test to the radio equipment. The Voltage of Surge maybe as high as the dozens kilovolt/meter in the instant microseconds, this will bring the enormous load to the whole system and the damage to the equipment, The Arrestors we provide will be worked as switching voltage to protect the communication base station.Correct selection of products is a guarantee to the high-efficient system.
Detailed Information
N Female to Female Bulkhead Surge Arrestor
Teruilai P/N: N-KKYB Datasheet
| Electrical data | Requirments | |
| Frequency range | DC-2.5GHZ | |
| Initial Discharge voltage | 230V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧10000MΩ | |
| Rated Power | 200W | |
| Insertion Loss | ≦0.4dB | |
| VSWR | ≦1.35 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃~+85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Coupling nut | Brass | Nickel plated |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
