RF Cable Assembly

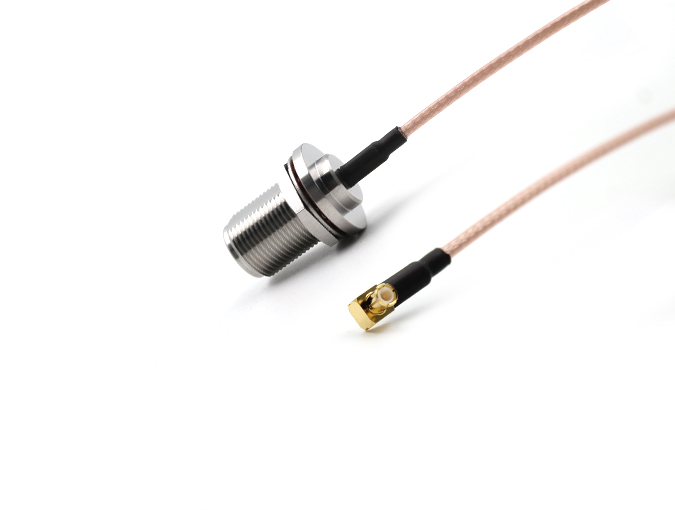

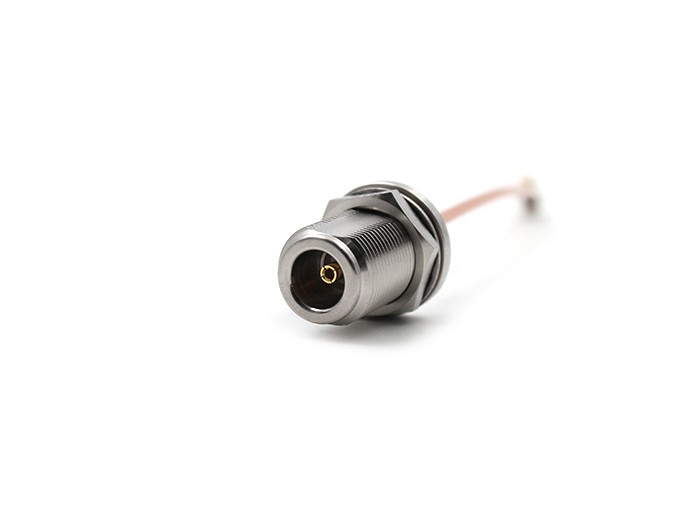

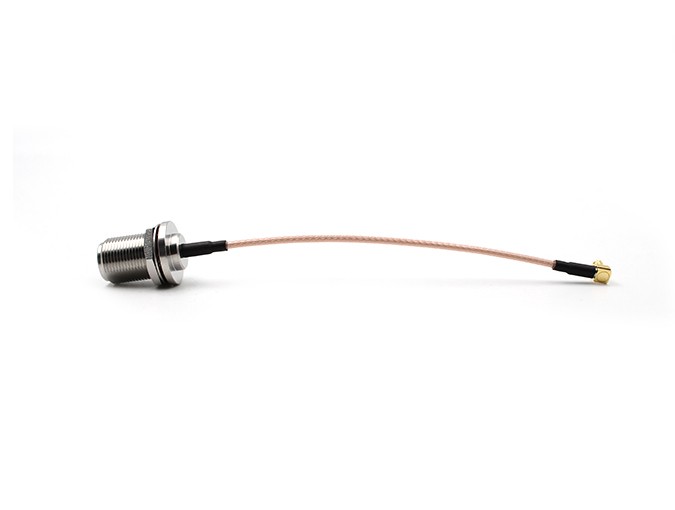

Cable Assembly N Female Bulkhead and MCX Male Right Angle with RG316 Cable, length 150mm
Model: TRL-NFB-316-MCXMW-150MM
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Cable Assembly N Female Bulkhead and MCX Male Right Angle with RG316 Cable, length 150mm
Teruilai P/N:TRL-NFB-316-MCXMW-150MM
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Dielectric withstanding voltage | 1000V(volts RMS) | |
| VSWR | 1.3:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
