RF Cable Assembly

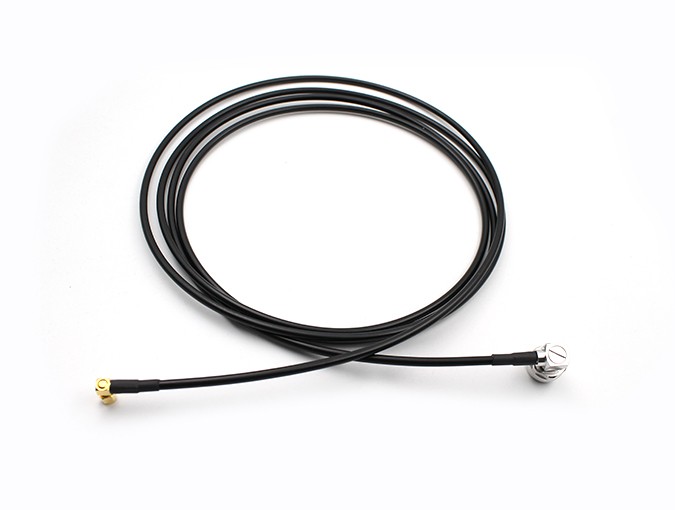

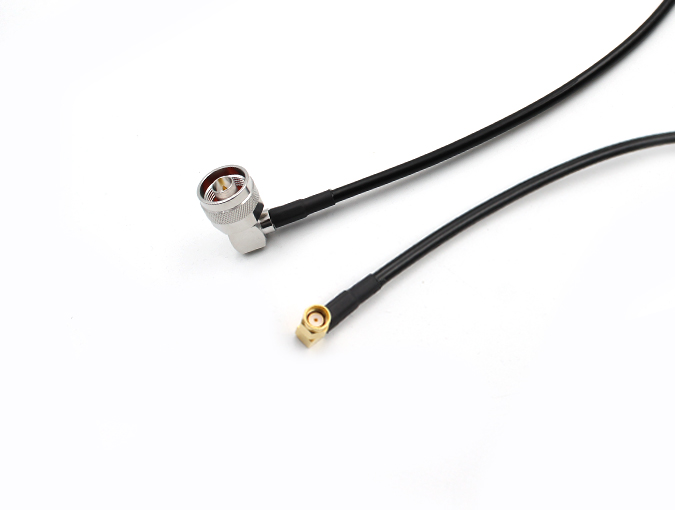

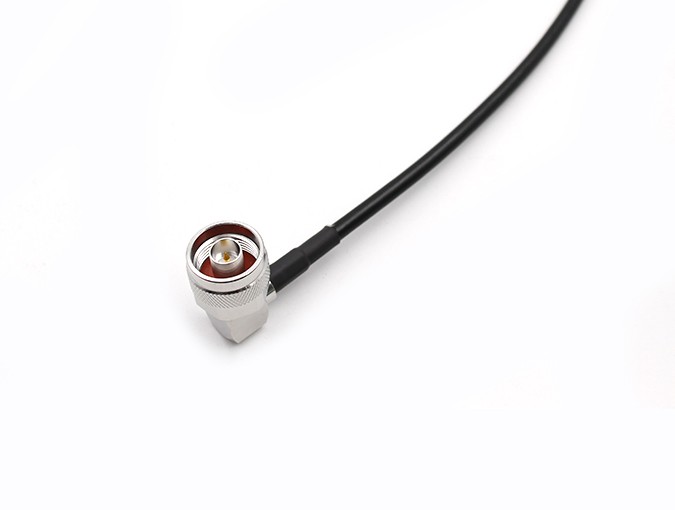

Coaxial Cable Assembly N Male Right Anlge and RPSMA Female Right Angle with RG195 cable, length 3 meter
Model: TRL-NMW-195-RPSMAMW-3M
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Coaxial Cable Assembly N Male Right Anlge and RPSMA Female Right Angle with RG195 cable, length 3 meter
Teruilai P/N: TRL-NMW-195-RPSMAMW-3M
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Dielectric withstanding voltage | 750V(volts RMS) | |
| VSWR | 1.15:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Brass | gold |
| Insulators | PTFE | |
