RF Cable Assembly

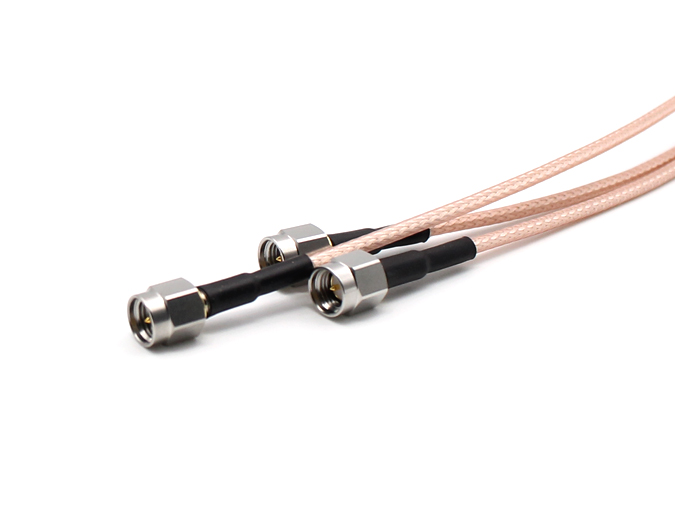

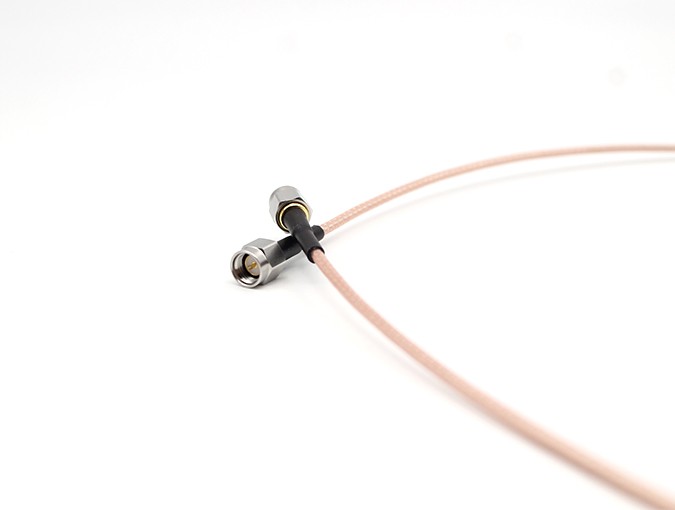

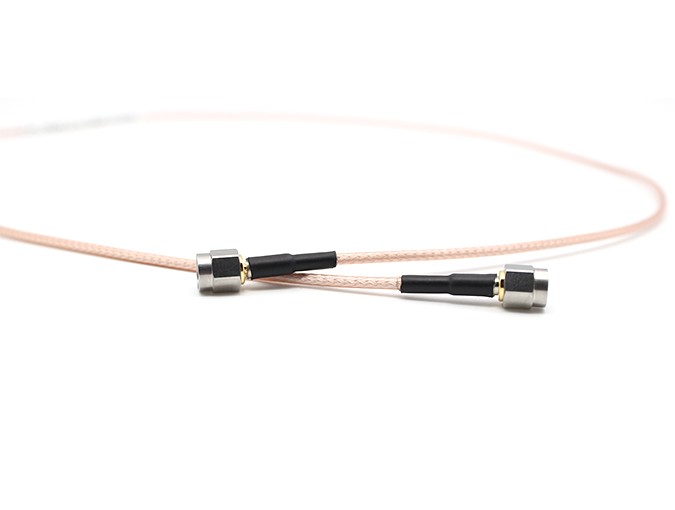

SMA male Connector and SMA male Connector with RG316 Cable Length 850mm
Model: TRL-SMAM-316-SMAM-850MM
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
SMA male Connector and SMA male Connector with RG316 Cable Length 850mm
Teruilai P/N: TRL-SMAM-316-SMAM-850MM
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-3GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | 1.30:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Pin contacts | Brass | Gold |
| Insulators | Teflon | |
