RF Cable Assembly

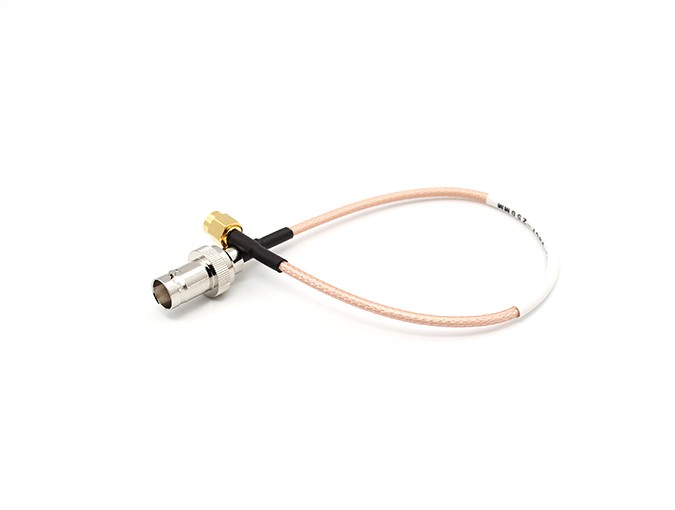

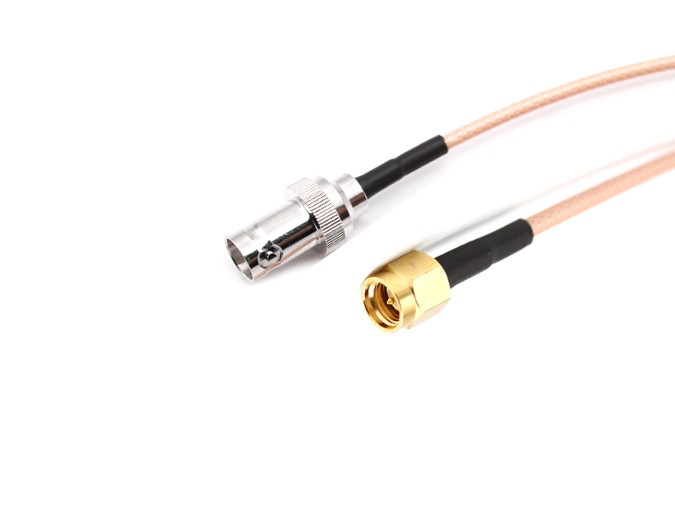

SMA male Connector and BNC Female Connector with RG316 Double Shield Cable Length 250mm
Model: TRL-SMAM-316D-BNCF-250MM
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
SMA male Connector and BNC Female Connector with RG316 Double Shield Cable Length 250mm
Teruilai P/N: TRL-SMAM-316D-BNCF-250MM Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.30:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Pin contacts | Brass | Gold |
| Insulators | Teflon | |
