RF Cable Assembly

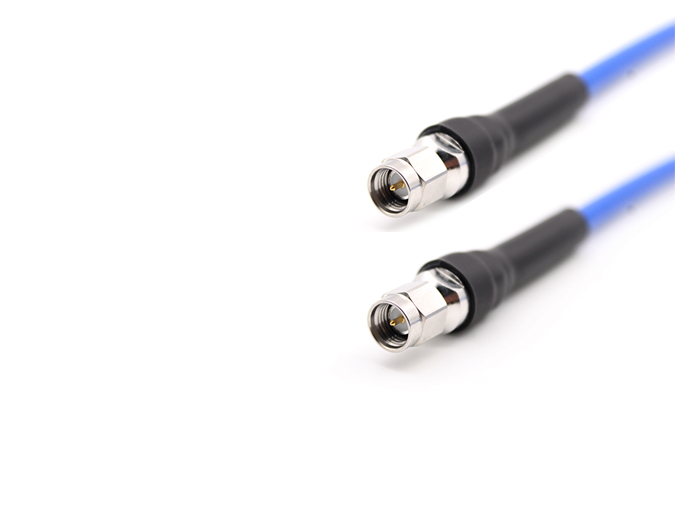

SMA male Connector and SMA male Connector with RG142 Cable Length 1.5M
Model: TRL-SMAM-142PUR-SMAM-1.5M
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
SMA male Connector and SMA male Connector with RG142 Cable Length 1.5M
Teruilai P/N: TRL-SMAM-142PUR-SMAM-1.5M
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Temperature range | -45℃~85℃ | |
