RF Cable Assembly

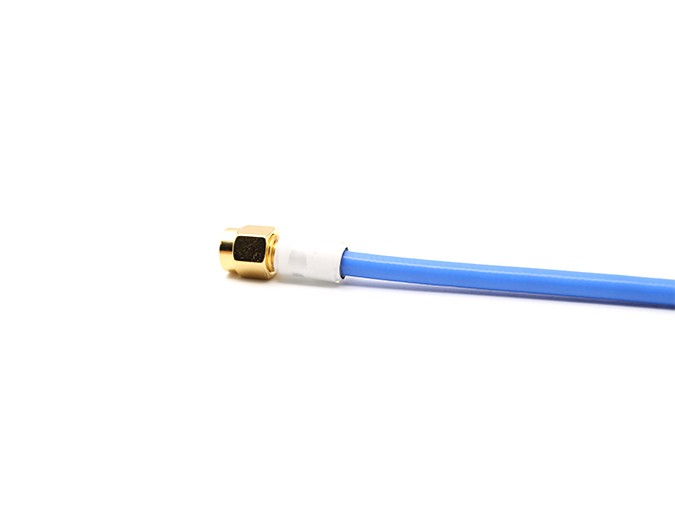

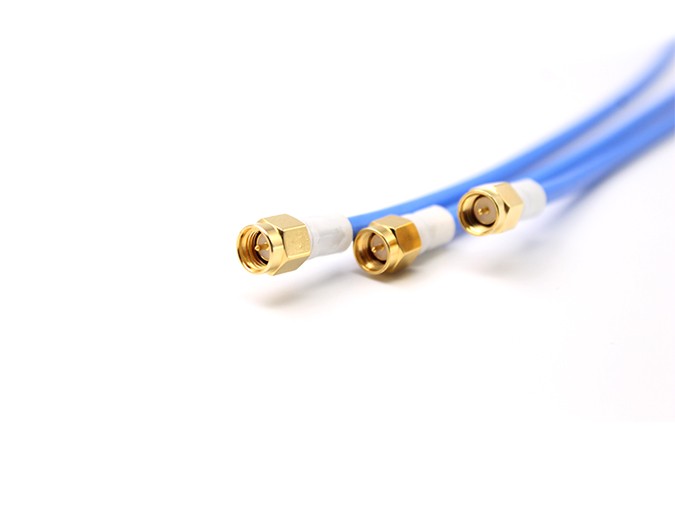

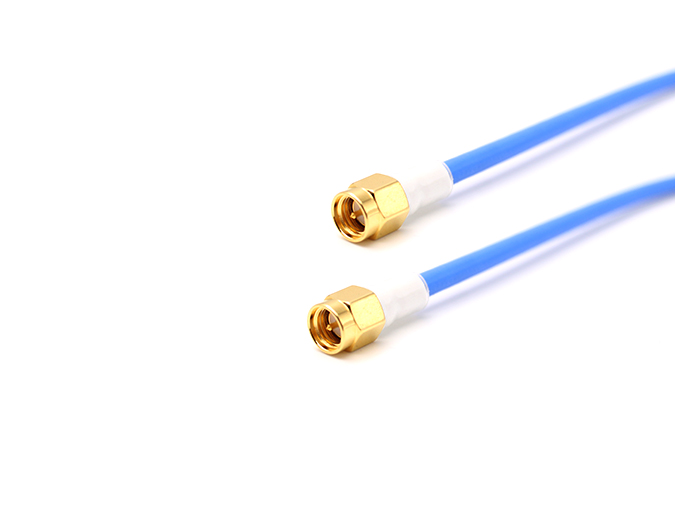

Double SMA Male Connector with 141 Cable Length 520mm Cable Assembly
Model: TRL-SMAM-141-SMAM-520MM
Product Introduction
TRL manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Double SMA Male Connector with 141 Cable Length 520mm Cable Assembly
Teruilai P/N: TRL-SMAM-141-SMAM-520 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.20:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Pin contacts | Brass | Gold |
| Insulators | Teflon | |
