RF Cable Assembly

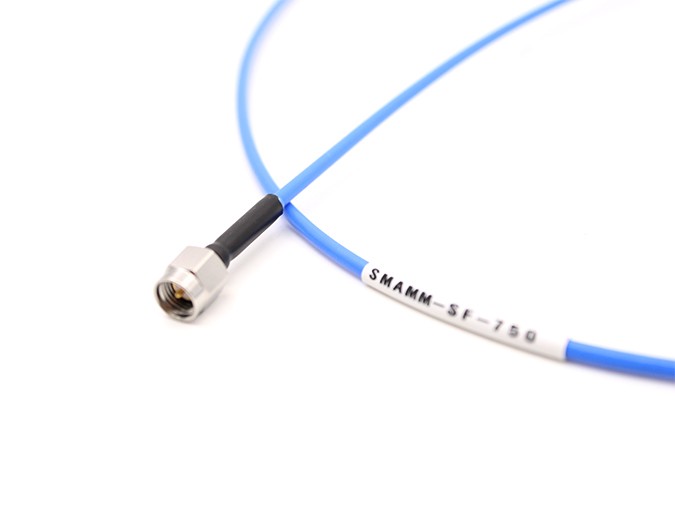

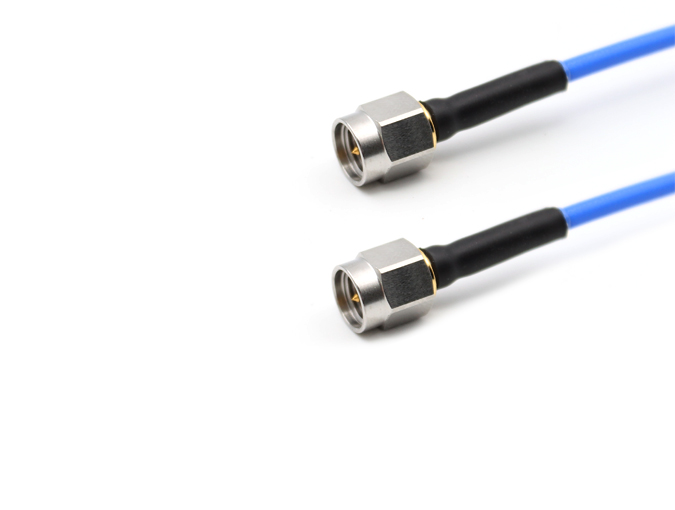

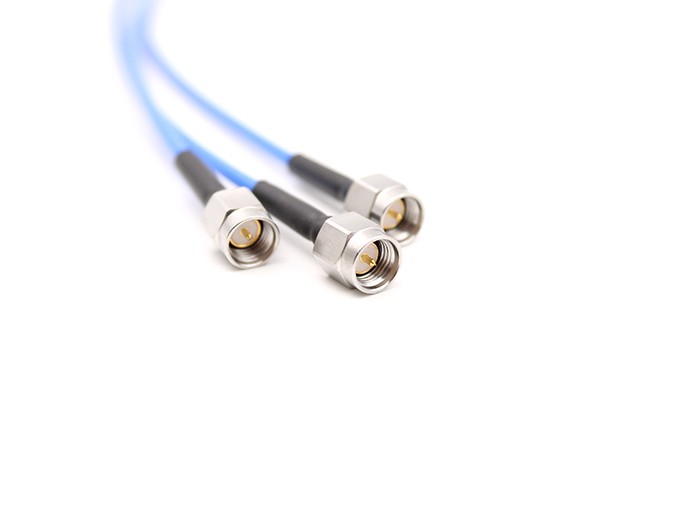

SMA male and SMA male with 086 Cable Length 750mm
Model: TRL-SMAM-086-SMAM-750
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
SMA male and SMA male with 086 Cable Length 750mm
Teruilai P/N:TRL-SMAM-086-SMAM-750
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | 1.30:1 | |
| Temperature range | -45℃-125℃ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
