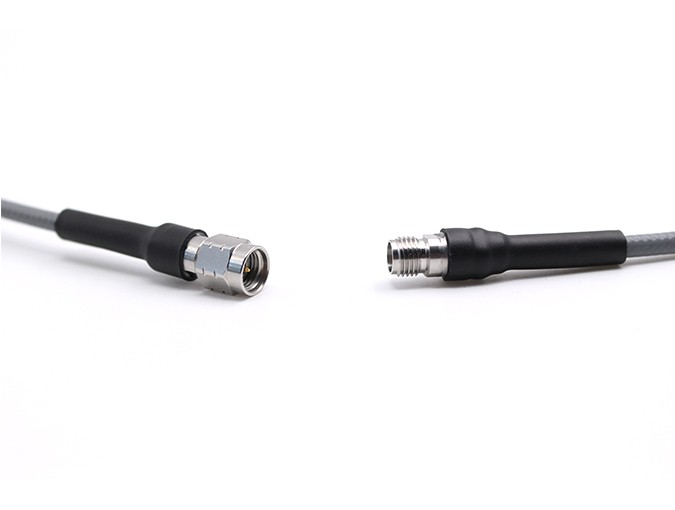

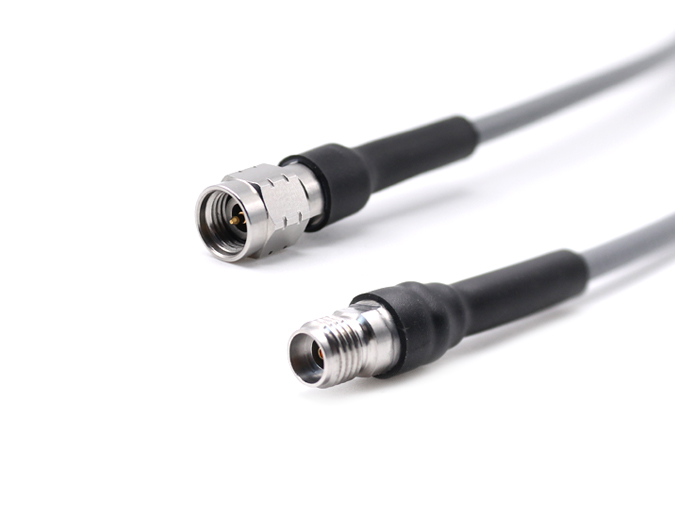

2.92mm Male to 2.92mm Female RF Cable Assembly with Gore CXN3507 Cable (1000mm) (TERUILAI P/N: TRL-2.92M-3507-2.92F-1000) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Ultra-high Frequency Millimeter-wave Transmission Performance

• Supports DC-40GHz full-band millimeter-wave transmission, covering mainstream 5G/6G and high-frequency test application bands

• Characteristic impedance of 50Ω, Voltage Standing Wave Ratio (VSWR) ≤1.25:1

• Maximum insertion loss of 3.0dB for the 1000mm length assembly, ensuring minimal signal attenuation

• Excellent phase consistency and amplitude stability for high-precision signal transmission

2.2 Optimized Gore CXN3507 Low-loss Cable

• Assembled with genuine Gore CXN3507 high-performance low-loss coaxial cable

• Precision-matched connector-cable interface ensures consistent impedance transition and minimal signal reflection

• Maximizes the low-loss and high-stability advantages of Gore cable in millimeter-wave applications

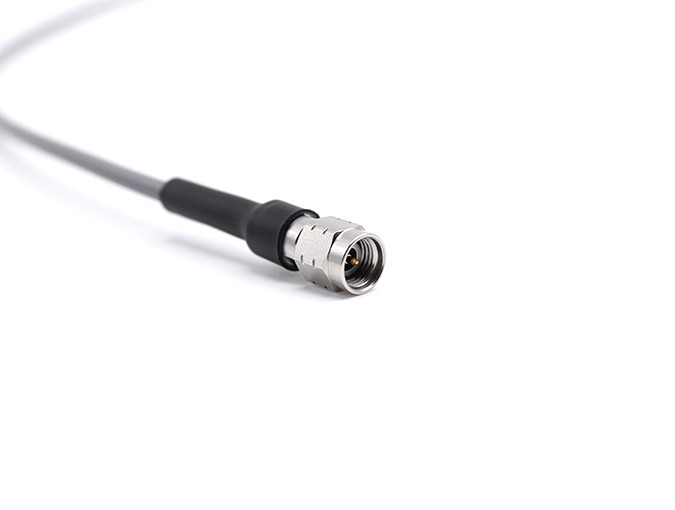

2.3 Precision 2.92mm Connector Construction

• Connector bodies made of high-quality stainless steel with passivation treatment for superior mechanical strength and corrosion resistance

• Pin contacts made of beryllium-copper with gold plating for excellent electrical conductivity and long-term stable contact performance

• PTFE insulators provide reliable electrical insulation and high-frequency performance

2.4 Flexible Customization Options

• Standard length of 1000mm, with custom lengths available upon request

• Comprehensive range of cable assembly types: flexible, semi-rigid, semi-flexible and 1.85mm high-precision versions

• Customizable connector configurations and termination methods to meet specific customer requirements

2.5 High Durability & Reliability

• Durability of ≥500 mating cycles for the connector interfaces

• Robust assembly process ensures long-term mechanical and electrical stability

• Suitable for frequent connection and disconnection in test and maintenance scenarios
