RF Cable Assembly

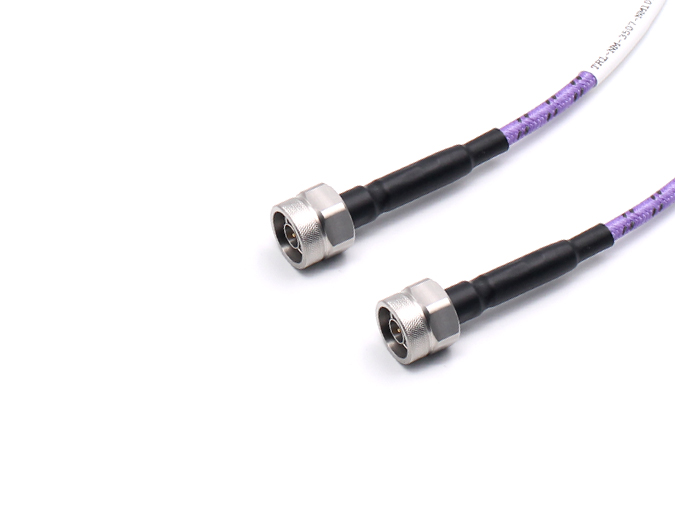

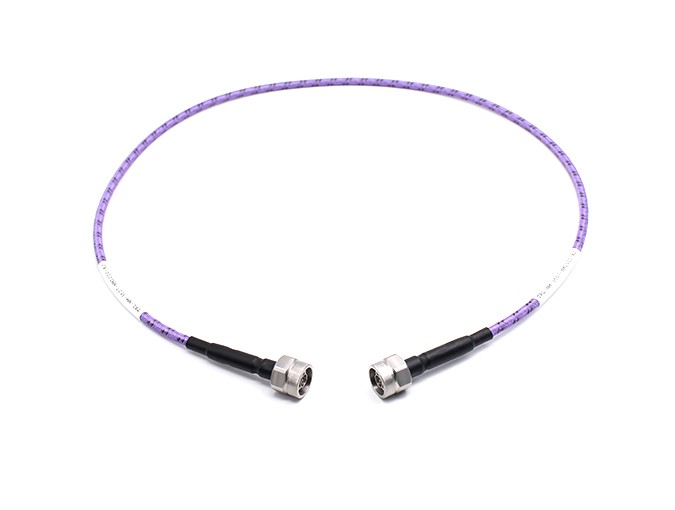

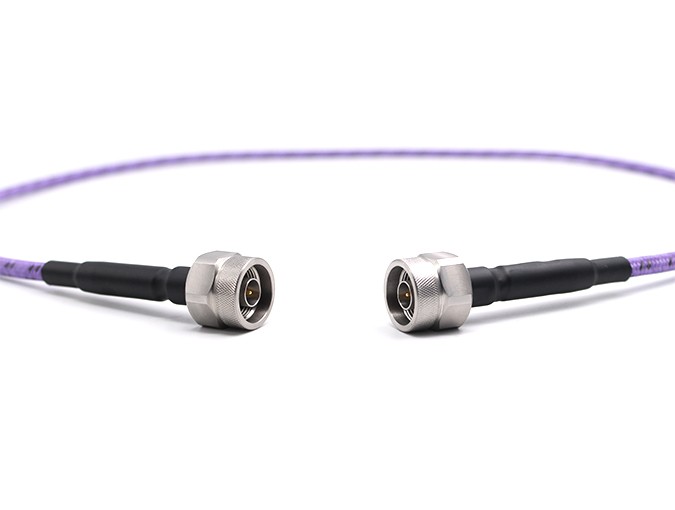

Cable Assembly N Male and N Male with cable TLL 220, length 1000mm
Model: TRL-NM-3507-NM-1000-KJ
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Cable Assembly N Male and N Male with cable TLL 220, length 1000mm
Teruilai P/N:TRL-NM-3507-NM-1000-KJ Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.5:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
