RF Cable Assembly

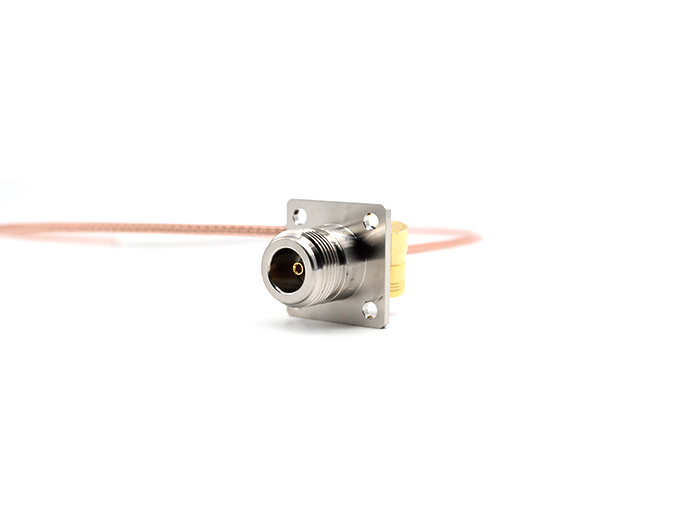

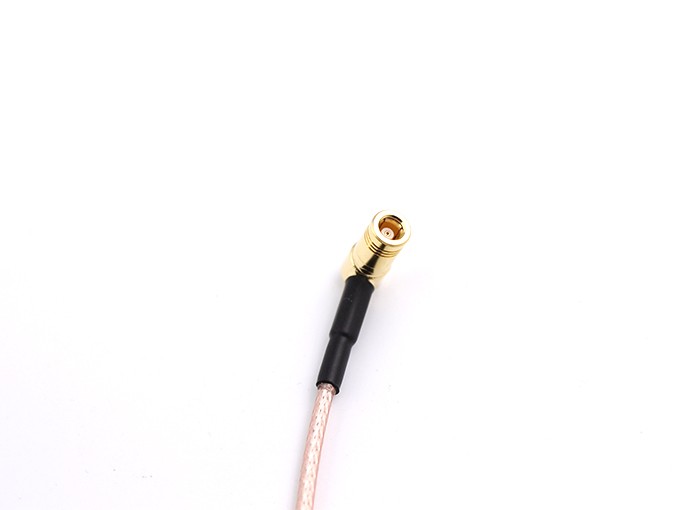

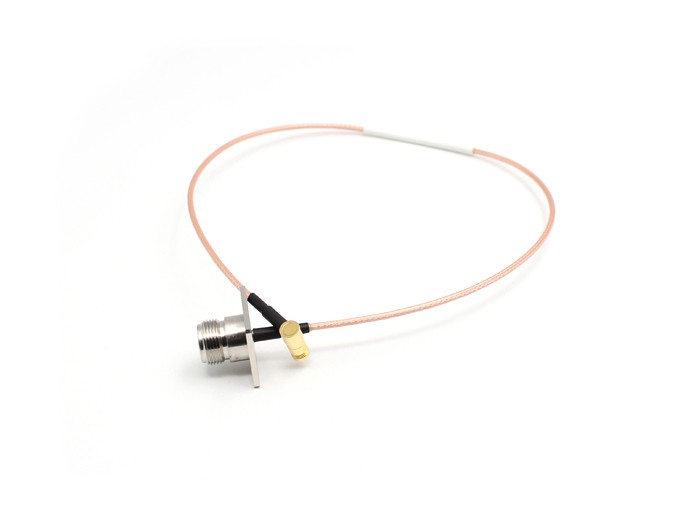

Cable Assembly SMB Female Right Angle and N Female Flange with RG316 Cable, length 500mm
Model: TRL-316-SMBFW-NF-500
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Cable Assembly SMB Female Right Angle and N Female Flange with RG316 Cable, length 500mm
Teruilai P/N:TRL-316-SMBFW-NF-500 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| Dielectric withstanding voltage | 750V | |
| VSWR | 1.30:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Brass | Gold |
| Insulators | Teflon | |
