RF Cable Assembly

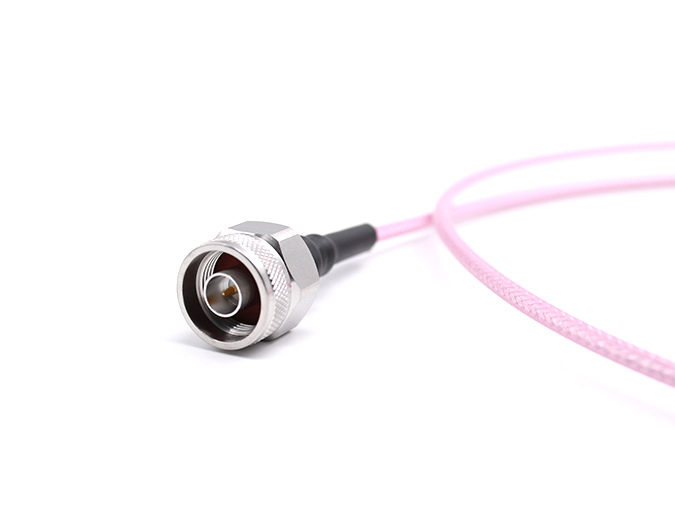

RF Coaxial Cable Assembly SMA Male and N Male with TFLEX141 cable, Length 1300mm
Model: TRL-SMAM-TFLEX141-NM-1300
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
RF Coaxial Cable Assembly SMA Male and N Male with TFLEX141 cable, Length 1300mm
Teruilai P/N:TRL-SMAM-TFLEX141-NM-1300
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Dielectric withstanding voltage | 1000V(volts RMS) | |
| VSWR | 1.2:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Pin contacts | Brass | Gold |
| Coupling nut | Stainless steel | passivated |
| Insulators | Teflon | |
