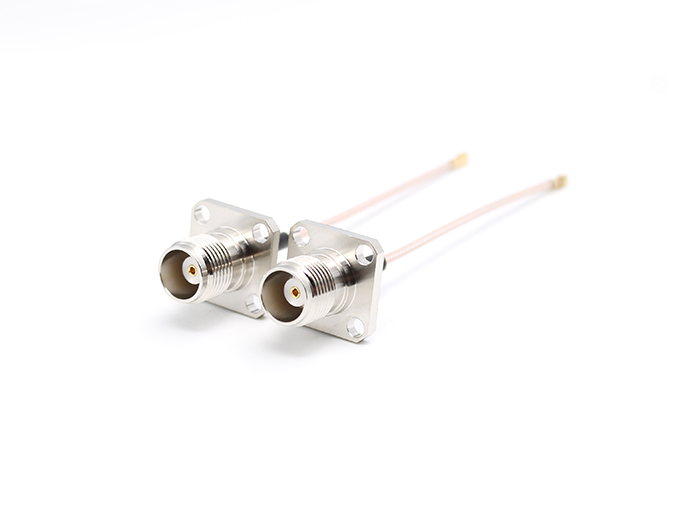

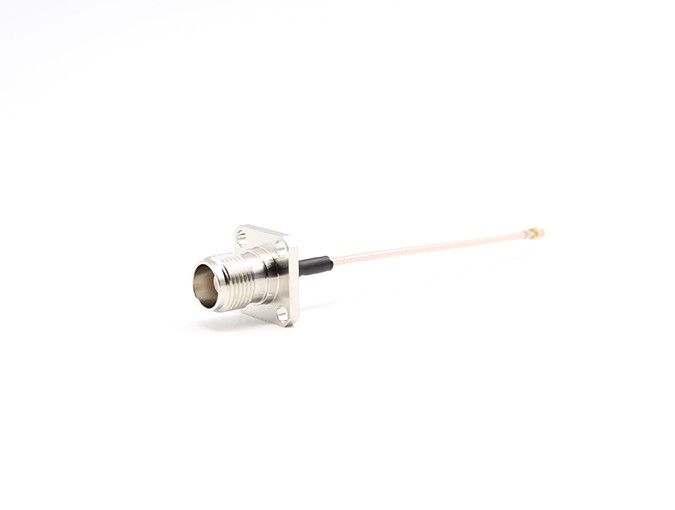

TNC Female Flange to IPEX RF Cable Assembly for RG178 Cable (TERUILAI P/N: TRL-TNCFF-178-IPEX1-75MM) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Stable Low-Frequency RF Performance

• Supports DC-3GHz operating frequency range, covering mainstream low-frequency RF application bands

• Characteristic impedance of 50Ω, Voltage Standing Wave Ratio (VSWR) ≤1.30:1

• Dielectric withstanding voltage of 500V, ensuring safe and reliable electrical operation

• Low insertion loss design guarantees accurate signal transmission

2.2 Dual-Interface Conversion Design

• TNC female flange to IPEX interface structure, realizing flexible connection between standard TNC interface equipment and miniature IPEX interface devices

• Flange mounting design enables firm and stable fixation on equipment panels or enclosures

• Optimized matching with RG178 coaxial cables ensures consistent impedance throughout the assembly

2.3 High Durability & Reliability

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• High-quality materials and plating provide excellent corrosion resistance and electrical conductivity

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.4 Customizable Production Capability

• Supports customized production of cable lengths, interface types and assembly forms

• Available in flexible, semi-rigid, semi-flexible and 1.85mm high-precision cable assembly options

• Meets the diverse connection requirements of different industrial and communication scenarios
