RF Cable Assembly

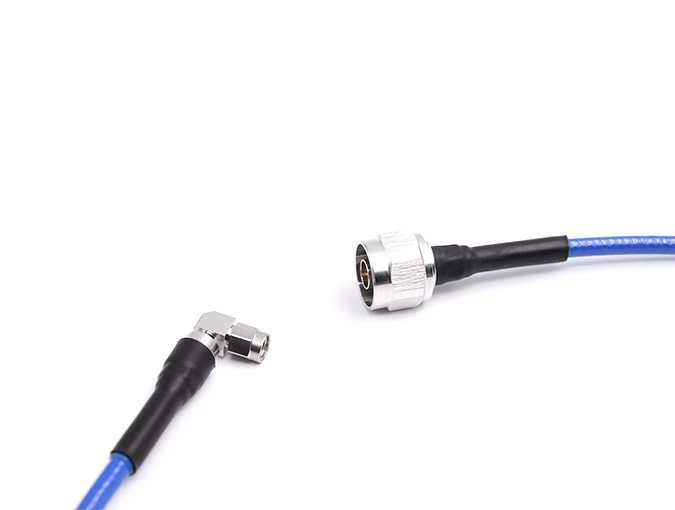

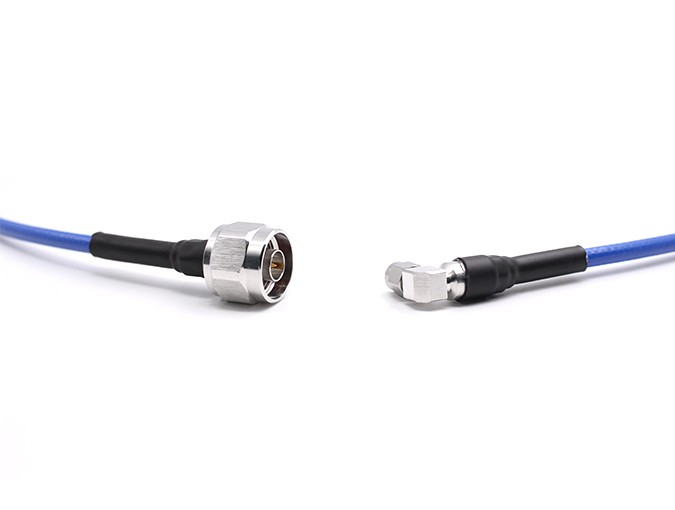

Cable Assembly N male and SMA male Right Angle with RG142 Cable length 1m
Model: TRL-NM-142PUR-SMAMW-1000
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Cable Assembly N male and SMA male Right Angle with RG142 Cable length 1m
Teruilai P/N: TRL-NM-142PUR-SMAMW-1000
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Dielectric withstanding voltage | 1000V(volts RMS) | |
| VSWR | 1.2:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Pin contacts | Brass | Gold |
| Coupling nut | Stainless steel | passivated |
| Insulators | PEI | |
