RF Cable Assembly

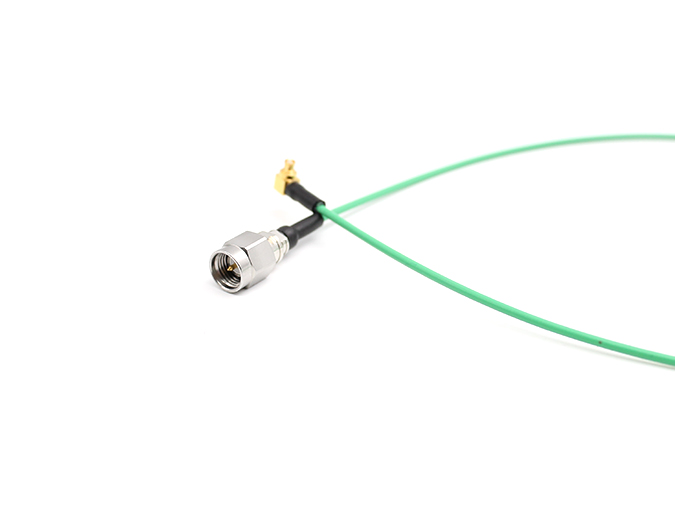

SMA Male and SMPM Female R/A with TF047 cable Length 400mm
Model: TRL-SMAM-TF047-SMPMFW-400
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
SMA Male and SMPM Female R/A with TF047 cable Length 400mm
Teruilai P/N: TRL-SMAM-TF047-SMPMFW-400 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4.5GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Dielectric withstanding voltage | 750V(volts RMS) | |
| VSWR | 1.15:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Coupling nut | Stainless steel | passivated |
| Pin contacts | Brass | gold |
| Insulators | PTFE | |
| SSMP Connector | ||
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Coupling nut | Stainless steel | passivated |
| Pin contacts | Brass | gold |
| Insulators | PTFE | |
