RF Cable Assembly

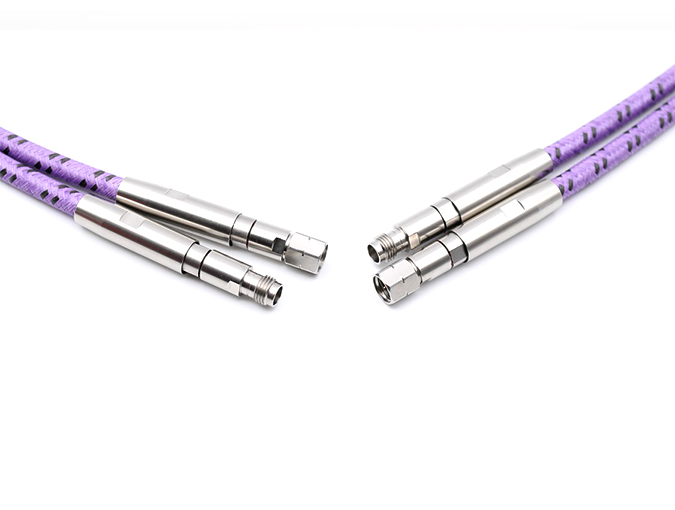

Cable Assembly 1.85mm Male and 1.85mm Female with HA360 cable length 1000mm
Model: TRL-1.85M-360-1.85M-1000
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Cable Assembly 1.85mm Male and 1.85mm Female with HA360 cable length 1000mm
Teruilai P/N:TRL-1.85M-220-1.85F-1000
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-65GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Insertion loss | 4.5dB max | |
| VSWR | 1.35:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
