RF Cable Assembly

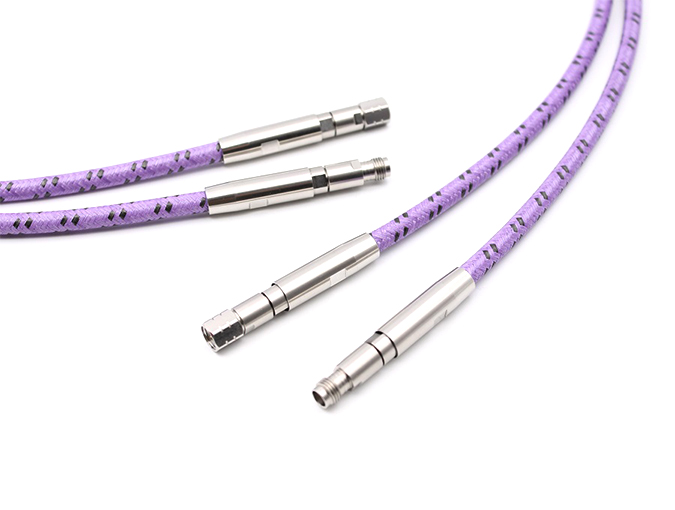

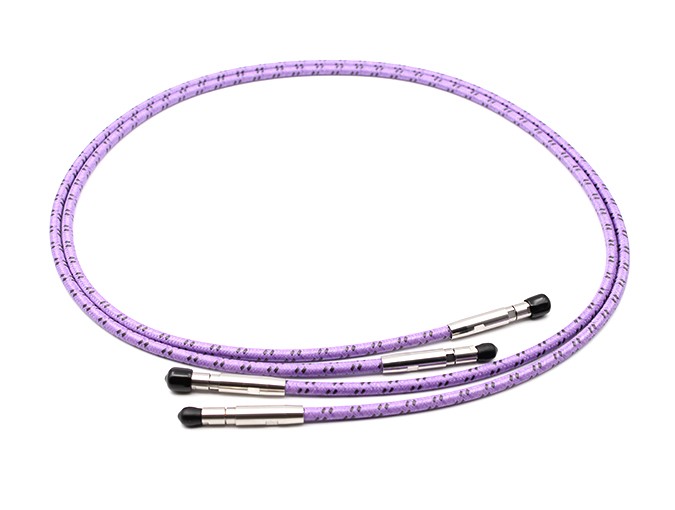

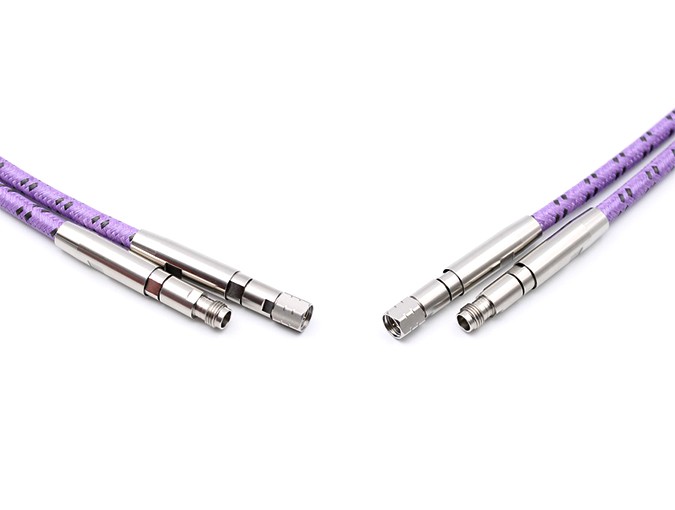

Cable Assembly 2.4mm Male and 2.4mm Male with Gore3507 Cable L=1000mm
Model: TRL-2.4M-3507-2.4M-1000
Product Introduction
Our company can manufacture the High Precision Cable Assembly for the GSM and connection between cabinet and cabinet, between cable and cabinet. We have various of the High Precision Cable Assembly, which can produce according to customer's requirement such as flexible cable assembly, semi-rigid cable assembly, semi-flexible cable assembly, and 1.85mm High Precision Cable Assembly.
Detailed Information
Cable Assembly 2.4mm Male and 2.4mm Male with Gore3507 Cable L=1000mm
Teruilai P/N:TRL-2.4M-3507-2.4M-1000 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Dielectric withstanding voltage | 1000V(volts RMS) | |
| VSWR | 1.3:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
