RF Coaxial Terminations

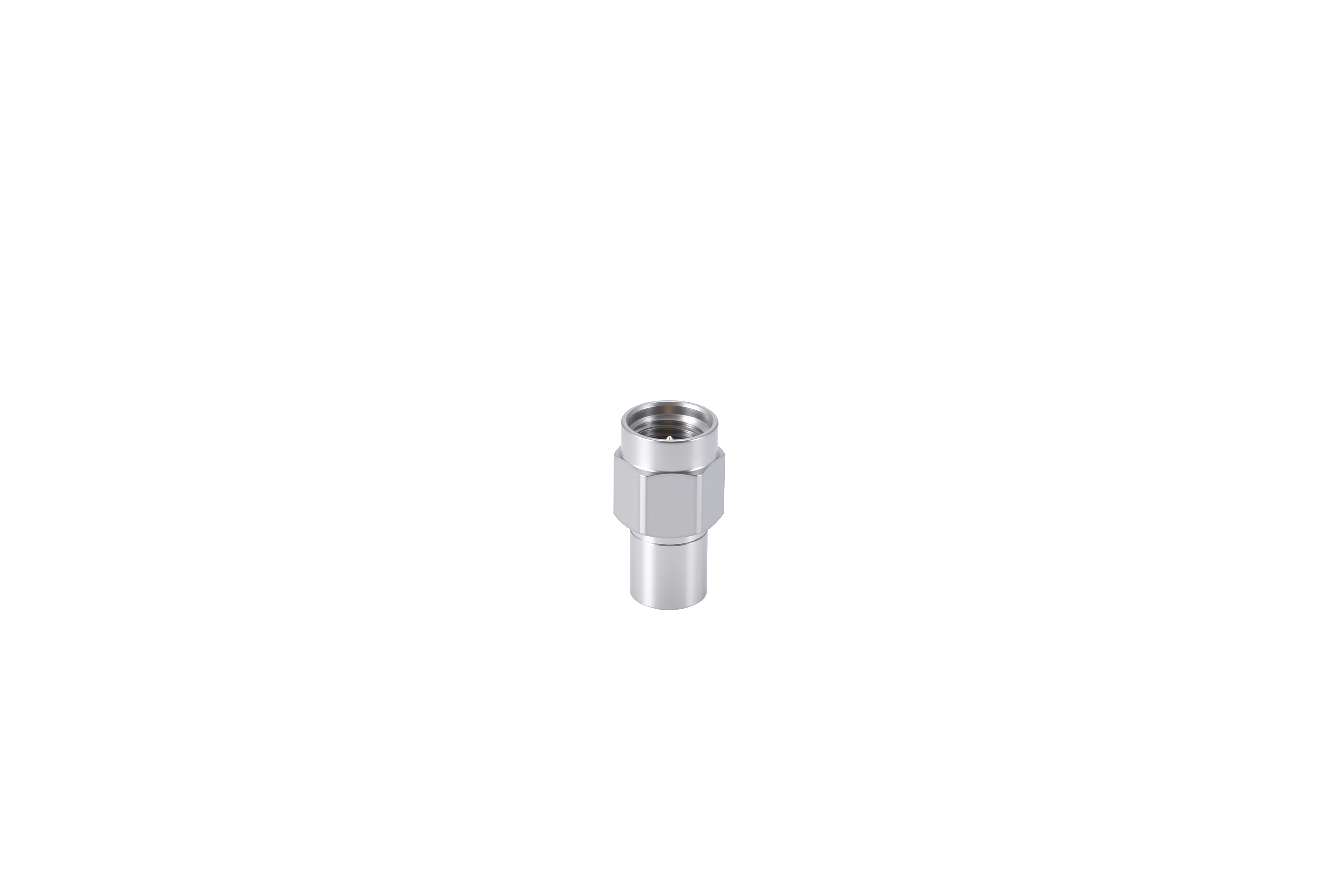

TERMINATION 3.5mm Male Conn. Termination
Model: 3.5-50JRA
Product Introduction
3.5-50JRA is a flange-mounted 3.5mm precision male coaxial connector. Adopting air dielectric precision machining and standard threaded interface, it delivers excellent broadband electrical performance up to 33GHz. Designed for fixed installation on equipment housings and test module panels, it ensures stable, repeatable high-frequency interconnection. Widely used in microwave measurement instruments, radar systems, millimeter-wave communication modules and RF test platforms.
Detailed Information
| Category | Item | Specification |
|---|---|---|
| Electrical | Impedance | 50 Ω |
| Electrical | Frequency Range | DC～30GHz |
| Electrical | VSWR | 1.3:1 |
| Electrical | Max Power | 0.5W |
| Materials & Plating | Body | Stainless Steel; Passivated |
| Materials & Plating | Insulator | PEI |
| Materials & Plating | Contact Pin | Beryllium-copper, gold plated |
| Materials & Plating | Nut | Stainless Steel; Passivated |
