RF Coaxial Terminations

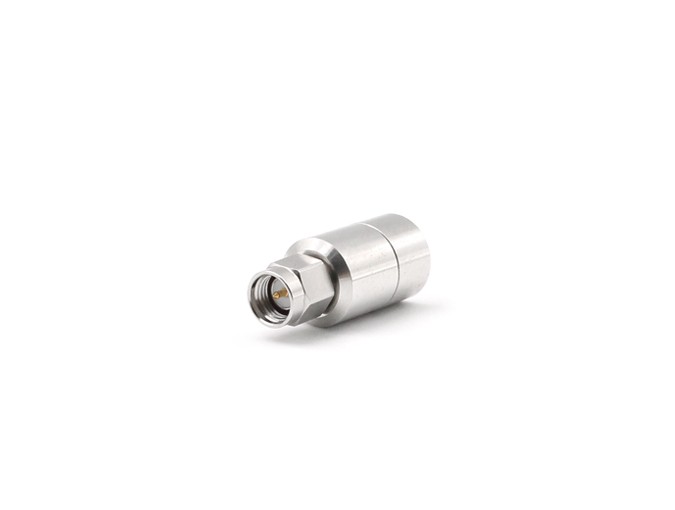

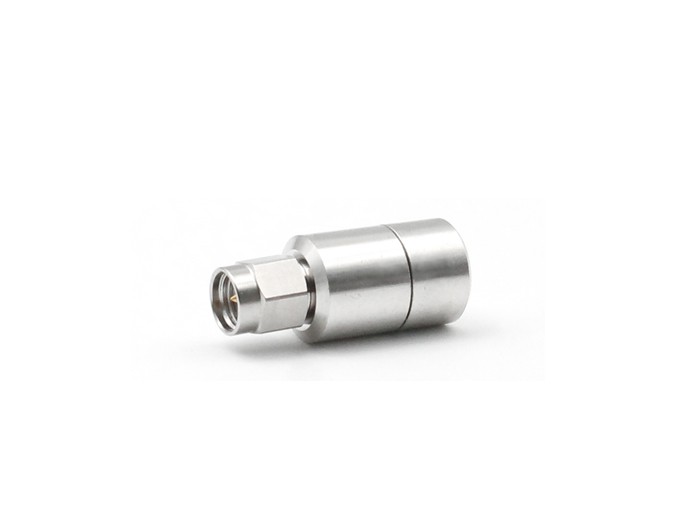

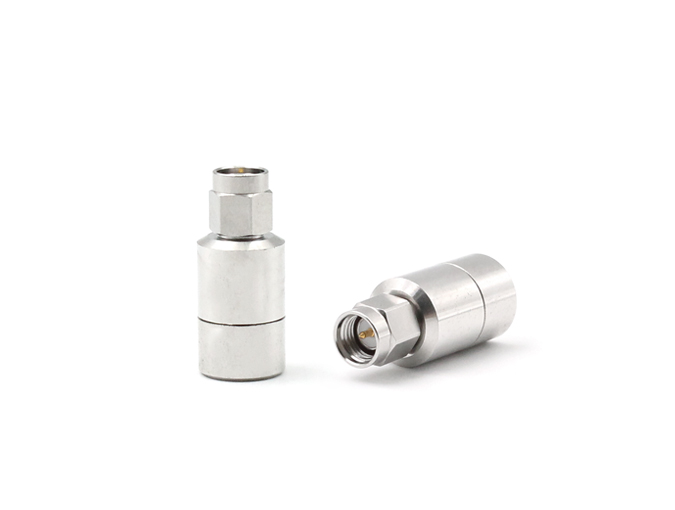

SMA Male Connector Termination 2W
Model: SMA-50JR-2W
Product Introduction
The SMA RF Termination can be designed based on customer's request ，with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.
Detailed Information
SMA male 1WRF Termination
Teruilai P/N: SMA-50JR-2W Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.25 | |
| Power | 1W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless Steel | Passivated |
| Pin contacts | Bronze | Gold-plated |
| Insulators | PTFE | |
