RF Coaxial Terminations

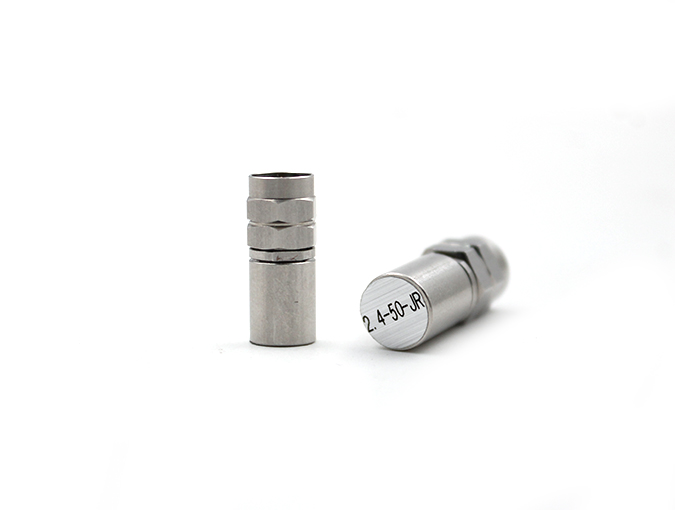

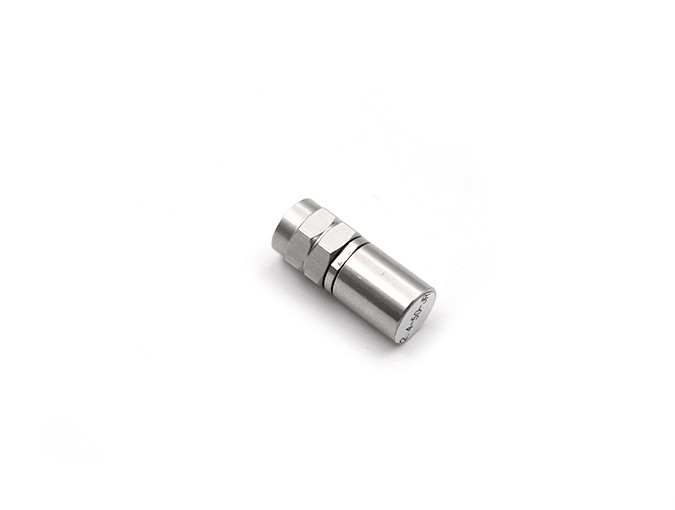

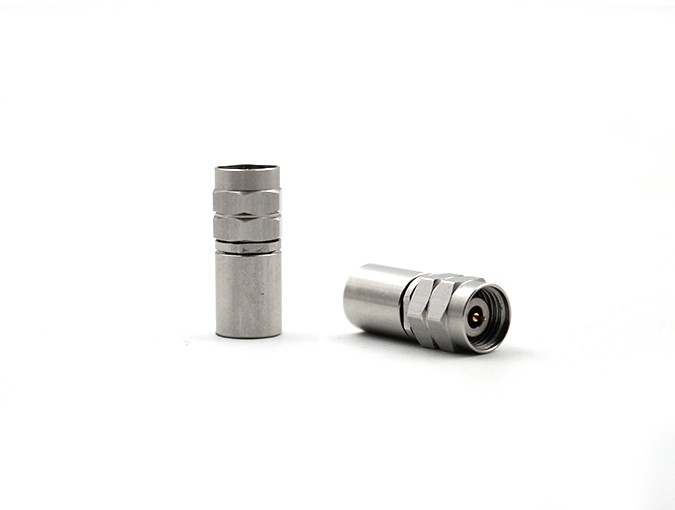

2.4mm Male Connector Termination
Model: 2.4-50JR
Product Introduction
According to customer requirements, the company can provide a variety of coaxial load. These loads with 50 ohm and 75 ohm impedance can be matched to the impedance of any transmission line and used as power absorption loads.
Detailed Information
2.4mm Male Connector Termination
Teruilai P/N: 2.4-50JR Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.15:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Coupling nut | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PEI | |
