RF Coaxial Terminations

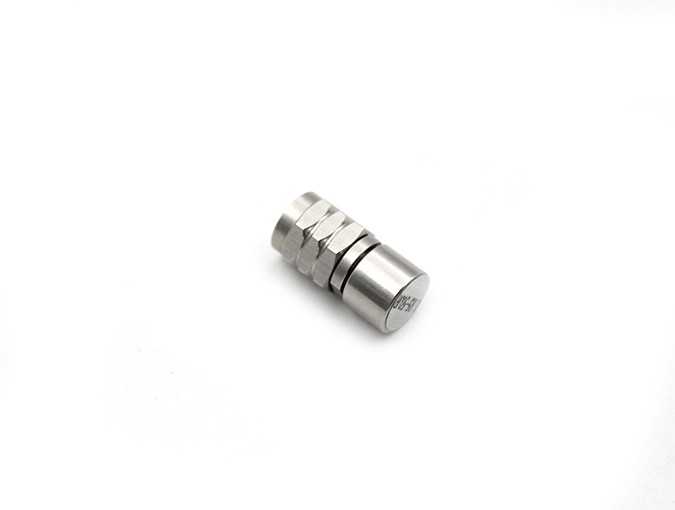

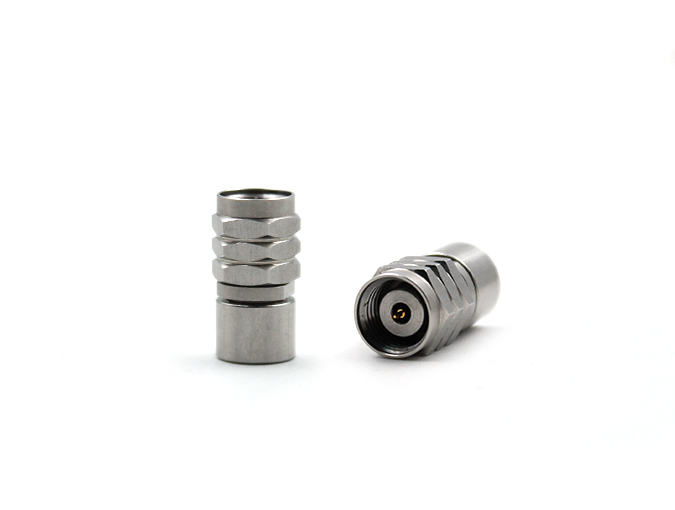

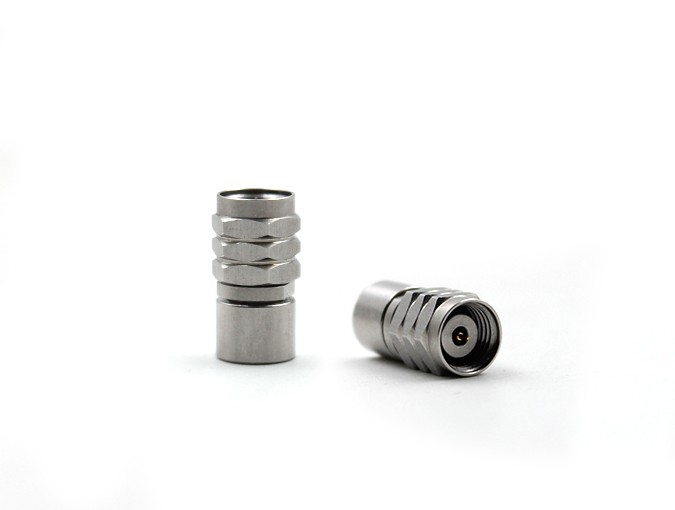

1.85mm Male Connector Termination
Model: 1.85-50JR
Product Introduction
Detailed Information
1.85mm Male Connector Termination
Teruilai P/N : 1.85-50JR
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-65GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel ,passivated | |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
