RF Coaxial Terminations

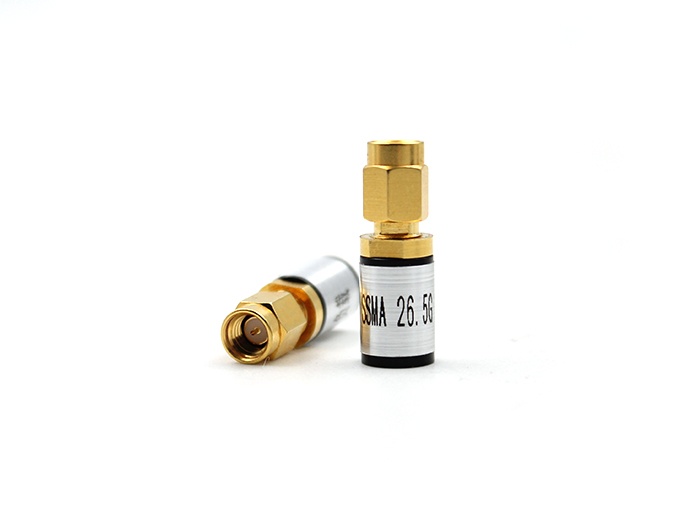

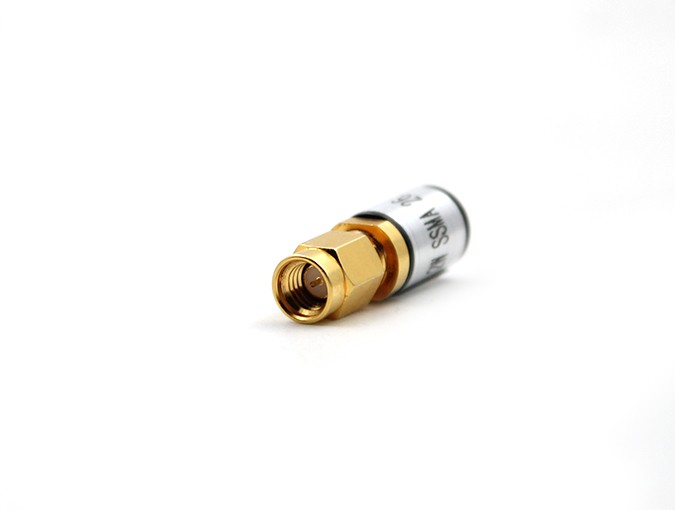

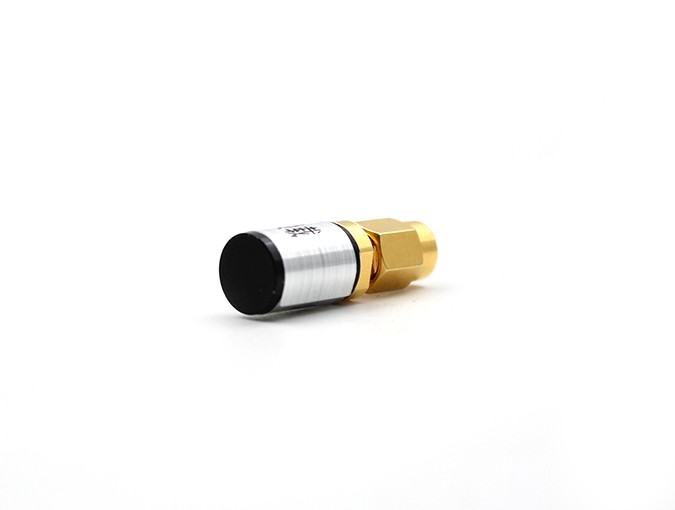

SSMA male 2 Watts RF Termination 26.5GHz
Model: SSMA-50JR-2-26.5
Product Introduction
The SSMA RF Termination can be designed based on customer's request ，with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.
Detailed Information
SSMA male 2 Watts RF Termination 26.5GHz
Teruilai P/N: SSMA-50JR-2-26.5
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-26.5GHZ | |
| Dieletric withstanding voltage | ≧1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Pin contacts | Bronze | gold-plated |
| Insulators | Teflon | |
