RF Coaxial Terminations

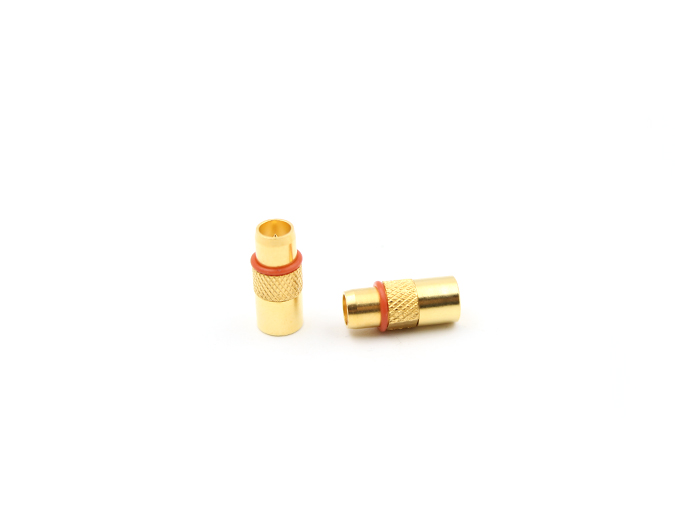

RF Termination BMA Male 0.5W
Model: BMA-JR-0.5
Product Introduction
The coaxial terminations can be designed based on customer 's request ，with impendence of 50Ω or 75 Ω.They can be matached to any transmission line . We have two kinds of material , brass with gold plated or stainless steel.
Detailed Information
RF Termination BMA Male 0.5W
Teruilai P/N: BMA-JR-0.5
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≤1.20 | |
| Power | 0.5W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
