RF Coaxial Terminations

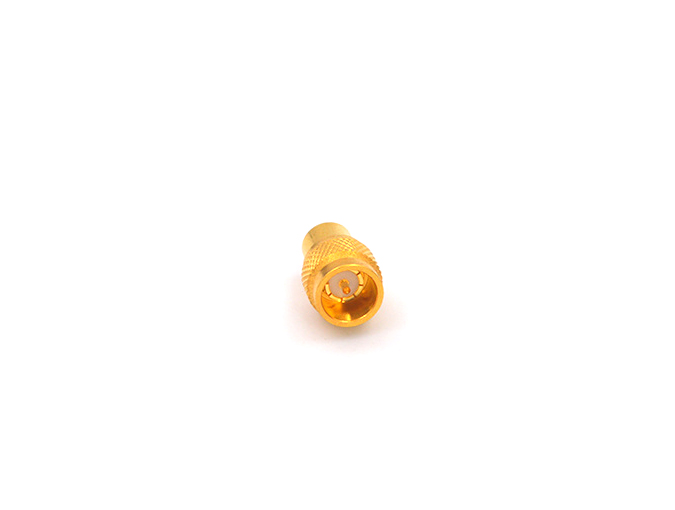

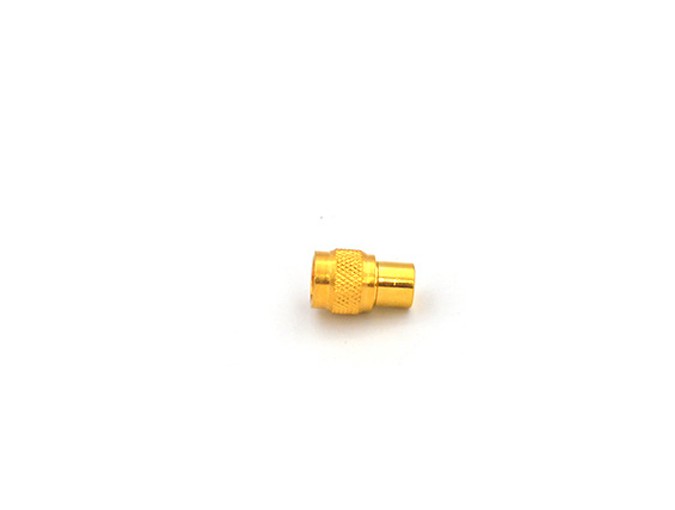

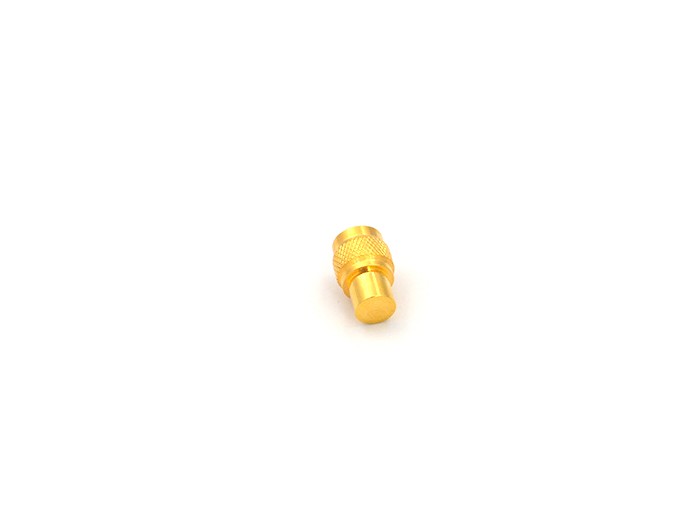

RF Termination Quick SMA Male, 1 Watt
Model: QSMA-50JR-1W
Product Introduction
According to customer requirements, the company can provide a variety of coaxial load. These loads with 50 ohm and 75 ohm impedance can be matched to the impedance of any transmission line and used as power absorption loads.
Detailed Information
RF Termination Quick SMA Male, 1 Watt
Teruilai P/N: QSMA-50JR-1W Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.15:1 | |
| Power | 1W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin contacts | Bronze | Gold |
| Insulators | PTFE | |
