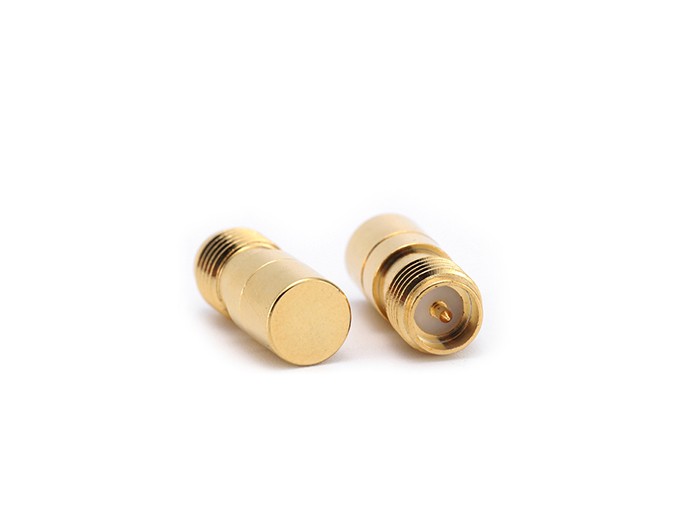

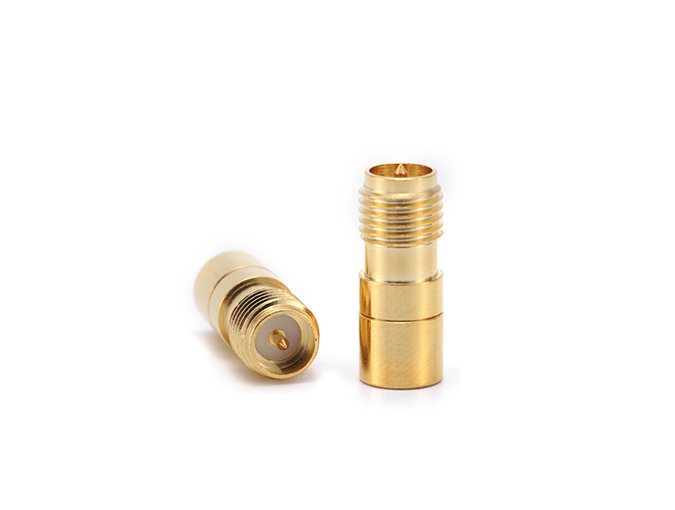

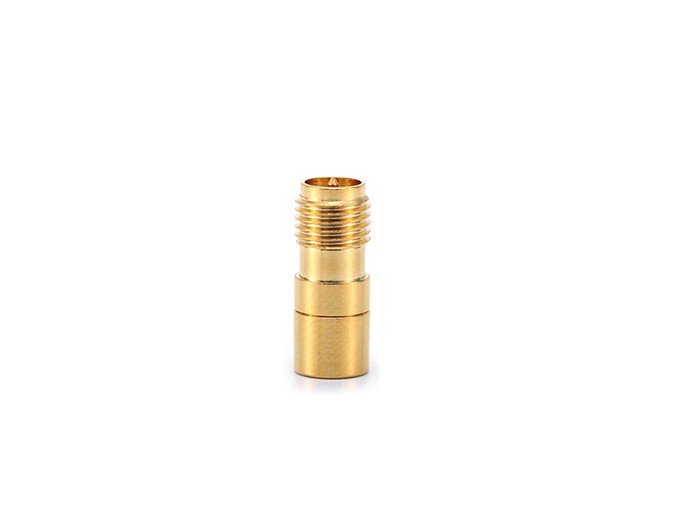

RPSMA Female Conn. Termination 1W
Model: RPSMA-50JR
Product Introduction
The RPSMA RF Termination can be designed based on customer's request ，with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.
Detailed Information
RPSMA Female Conn. Termination 1W
Teruilai P/N: RPSMA-50JR Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Dieletric withstanding voltage | ≧1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| VSWR | 1.30:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
| Coupling Nut | Brass | Gold |
