RF Coaxial Terminations

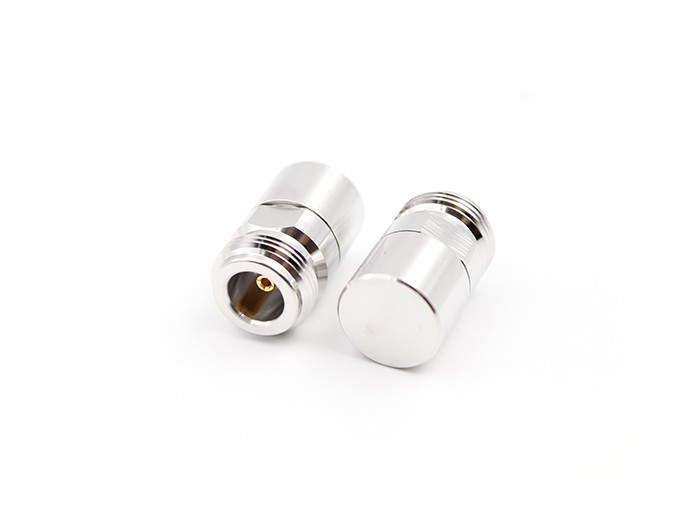

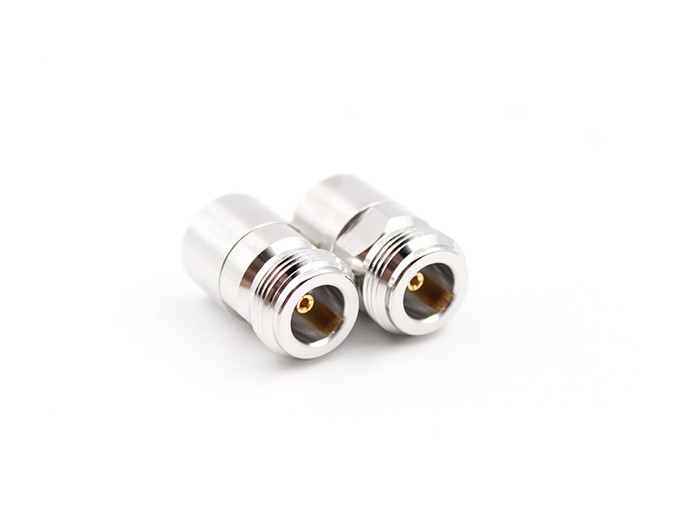

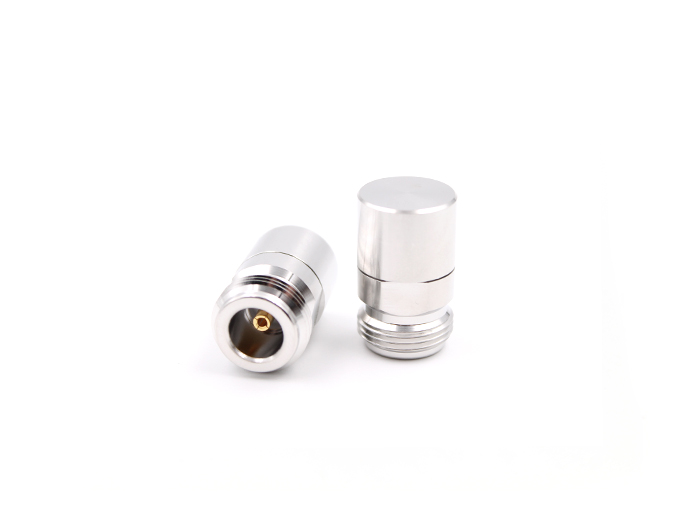

N female Connector Termination 2Watt
Model: N-50KR-2
Product Introduction
According to customer requirements, the company can provide a variety of coaxial load. These loads with 50 ohm and 75 ohm impedance can be matched to the impedance of any transmission line and used as power absorption loads.
Detailed Information
N female Connector Termination 2Watt
Teruilai P/N: N-50KR-2 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.25:1 | |
| Power | ≦2W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
