RF Coaxial Terminations

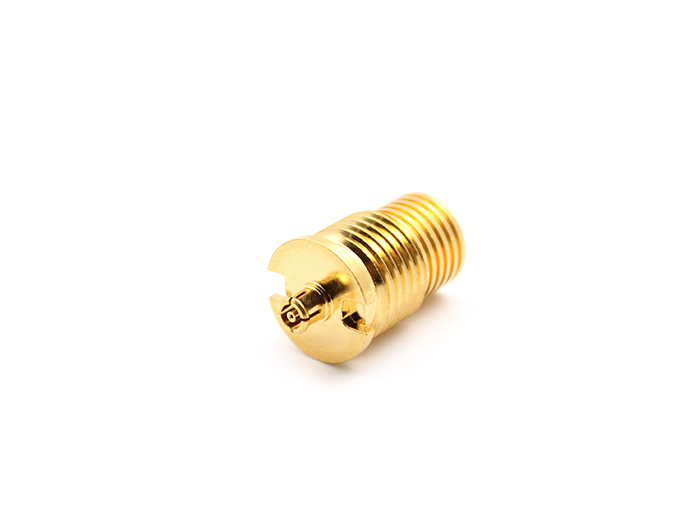

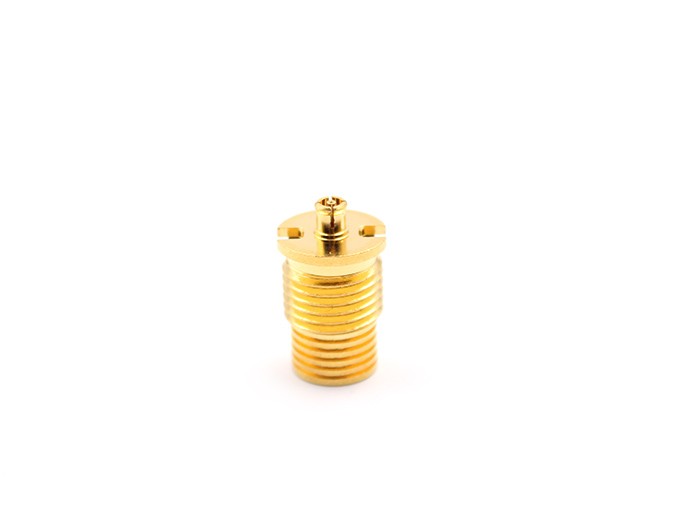

SMP Female 1Watt 18GHz Termination
Model: SMP-50KR-1-18
Product Introduction
According to customer requirements, the company can provide a variety of coaxial load. These loads with 50 ohm and 75 ohm impedance can be matched to the impedance of any transmission line and used as power absorption loads.
Detailed Information
SMP Female 1Watt 18GHz Termination
Teruilai P/N: SMP-50KR-1-18
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.25 | |
| Power | 1W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Coupling nut | Brass | Gold |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
