RF Coaxial Terminations

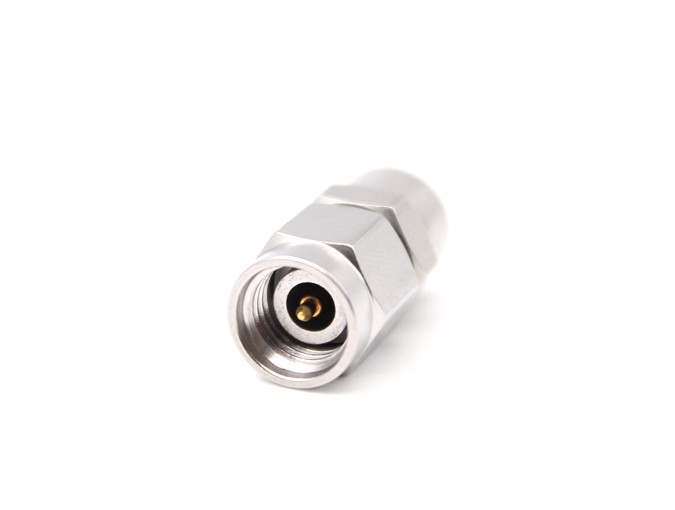

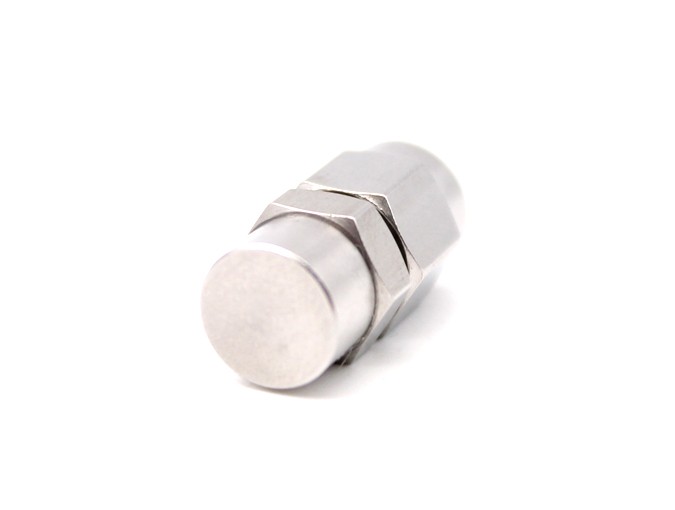

2.92 Male 0.5 Watts RF termination
Model: 2.92-50JRBCG
Product Introduction
Series 2.92mm Coaxial connectors are one kind of precision millimeter-wave connectors developed from series SMA.They adopt air interface.2.92 mm termination have the advantages of small,light,high frequency and superior reliability,etc.The 2.92 mm termination products have been widely used in the field of modern precision measure and micro-wave communication equipment.
Detailed Information

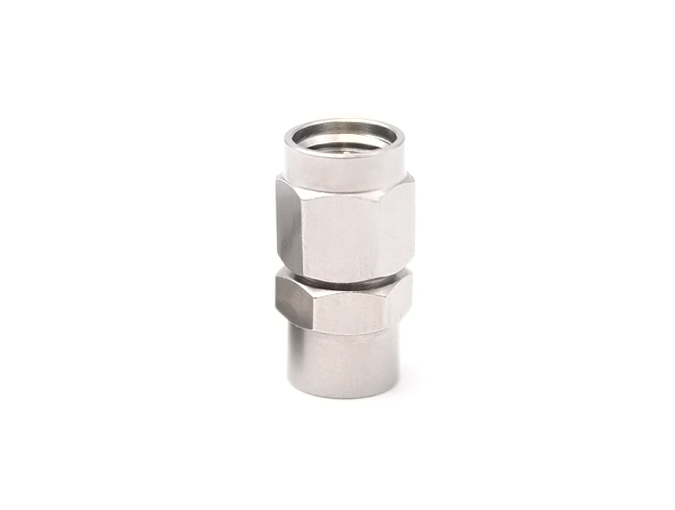

2.92 Male 0.5 Watts RF termination
Teruilai P/N : 2.92-50JRBCG Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-40GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel ,passivated | |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
