RF Coaxial Terminations

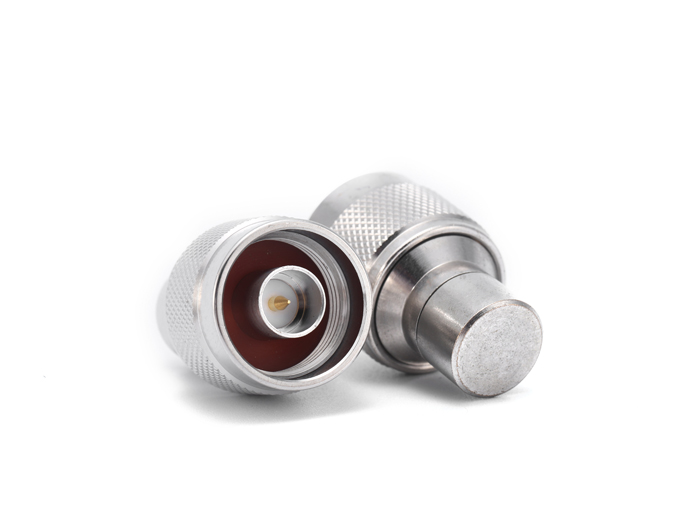

N male Connector Termination dummy load
Model: N-50JR-18A
Product Introduction
The N RF Termination can be designed based on customer's request ，with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.
Detailed Information

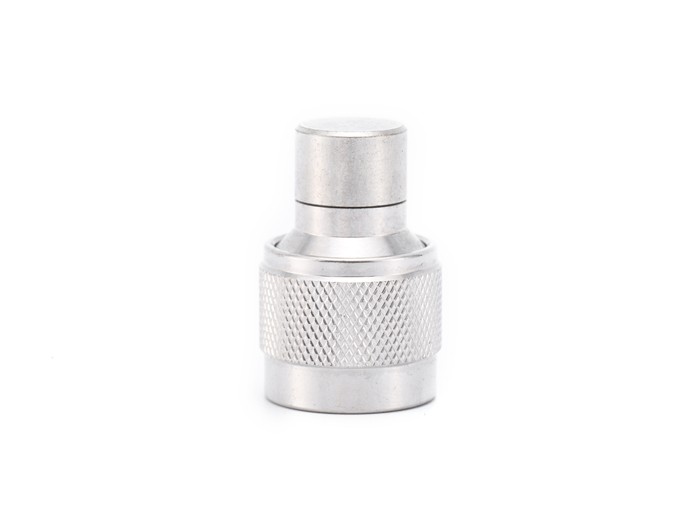

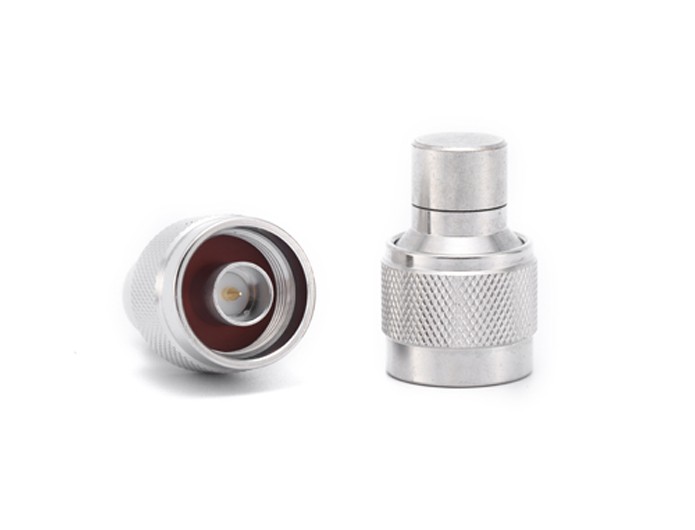

N male Connector Termination
Teruilai P/N: N-50JR-18A Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | ≧1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧2000MΩ | |
| Power | 2W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel-plated |
| Pin contacts | Bronze | gold-plated |
| Insulators | Teflon | |
