RF Coaxial Terminations

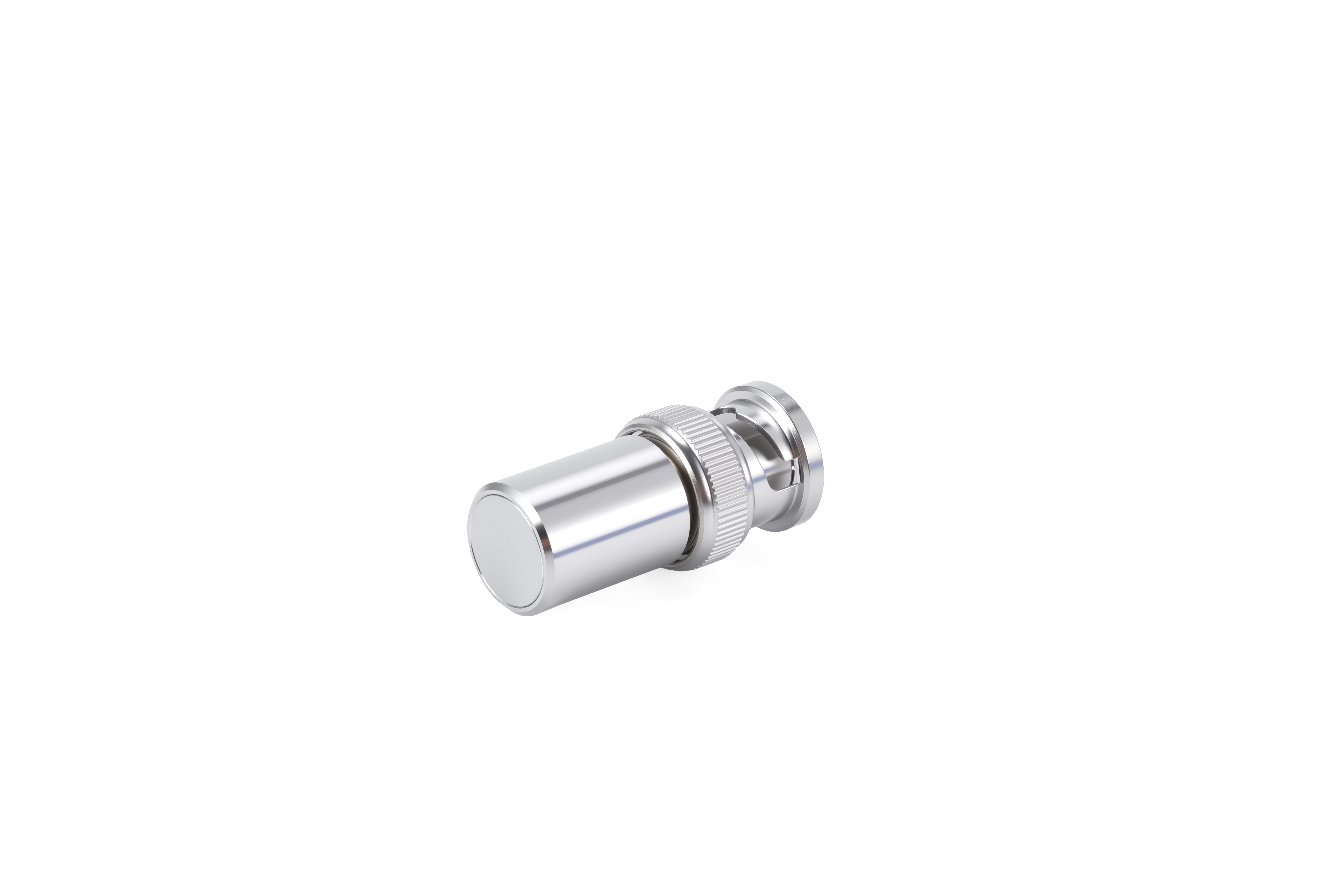

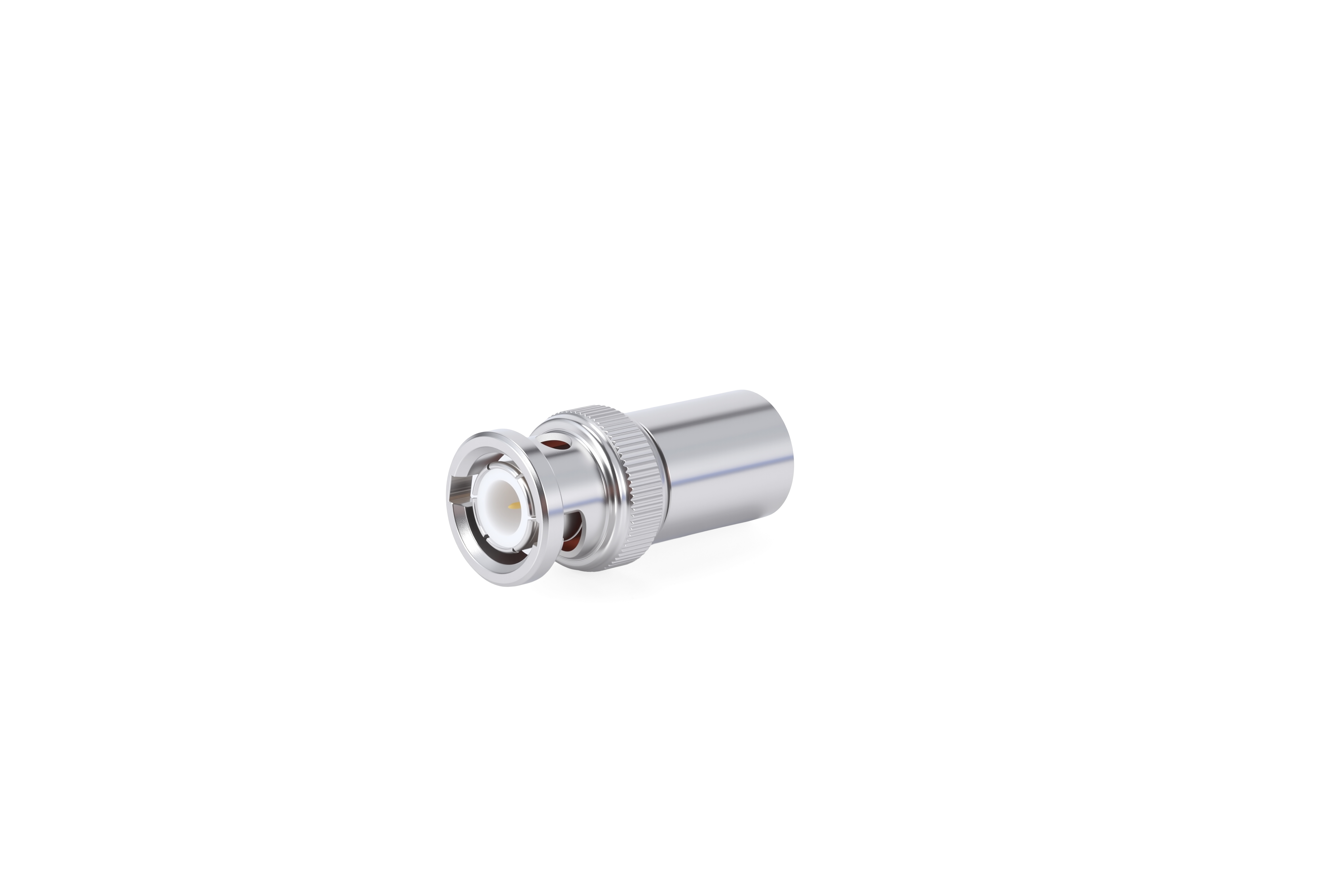

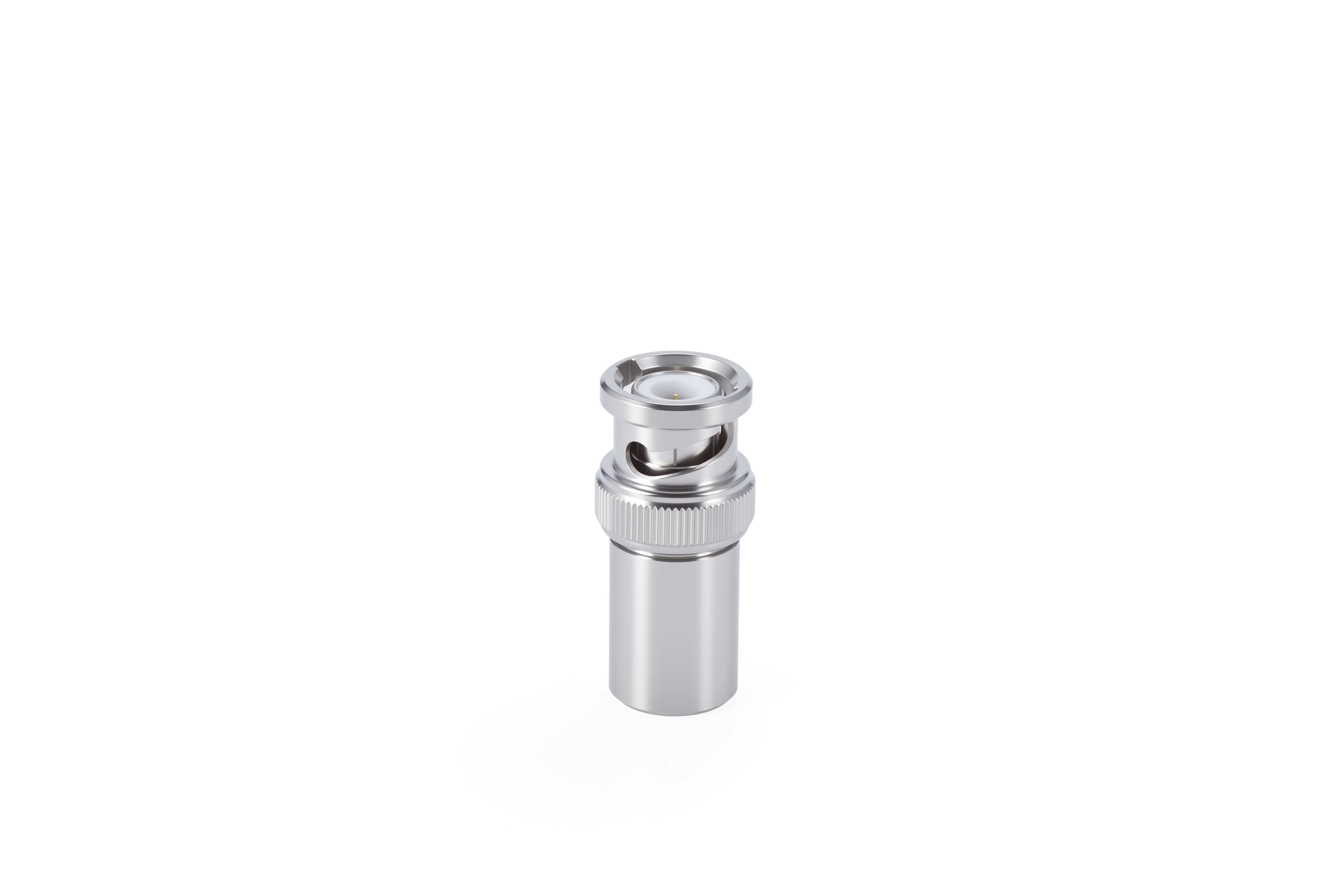

BNC 50Ω male RF Terminnation dummy load
Model: BNC-50JRA
Product Introduction
The BNC RF Termination can be designed based on customer's request ，with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.
Detailed Information
BNC 50Ω male RF Terminnation dummy load
Teruilai P/N:BNC-50JRA Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Characteristic impedance | 50Ω | |
| Frequency range | DC-4GHZ | |
| Dieletric withstanding voltage | 1500V（volts RMS） | |
| Insulation Resistance | ≧5000MΩ | |
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| VSWR | ≦1.20 | |
| Power | ≦2W | |
| Environmental&Mechanical data | Requirments | |
| Temperature range | -40℃ to 85℃ | |
| RoHs Complaint | ||
| Durability | >500 cycles | |
| Material&Finish data | Requirments | |
| Body | Brass，Nickle plated Gold plated | |
| Insulator | Teflon | |
| Contact Pin | Bronze,gold plated | |
