RF Coaxial Terminations

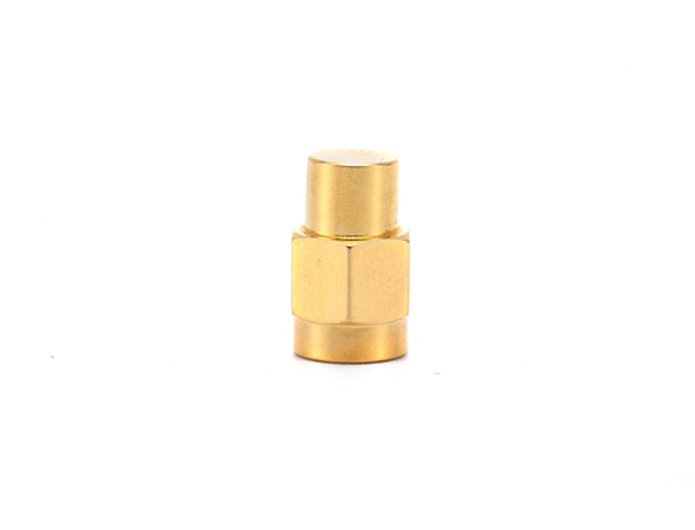

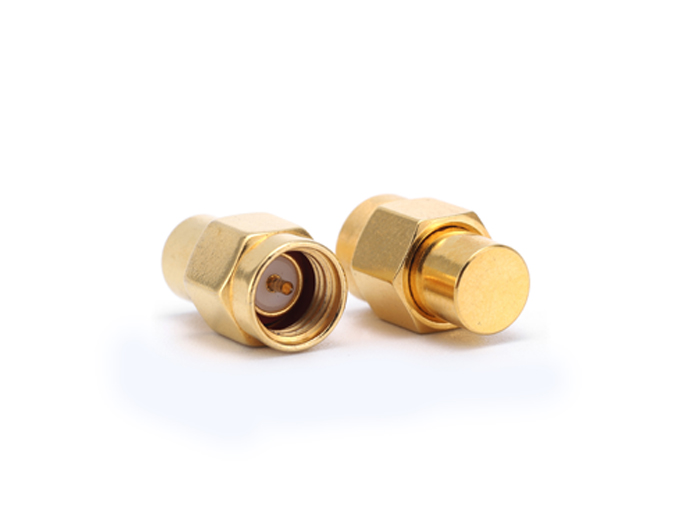

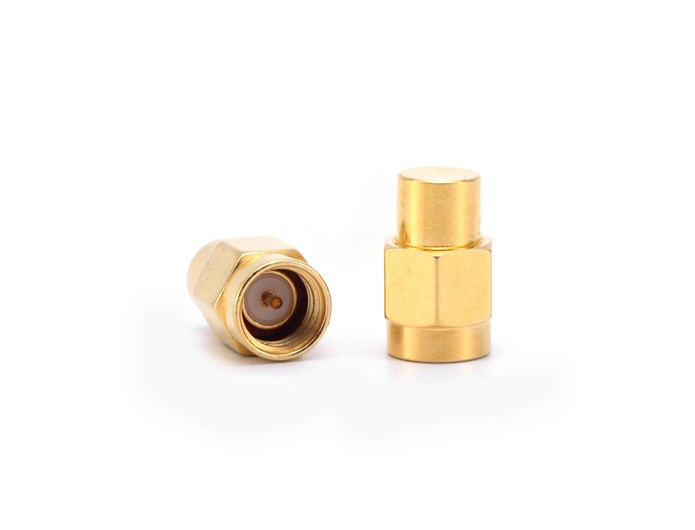

SMA male RF Termination
Model: SMA-50JR
Product Introduction
The SMA RF Termination can be designed based on customer's request ，with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.
Detailed Information
SMA male RF Termination
Teruilai P/N: SMA-50JR Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | ≧1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| VSWR | ≦1.15:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Pin contacts | Bronze | gold-plated |
| Insulators | Teflon | |
| Nut | Brass | gold-plated |
