RF Coaxial Terminations

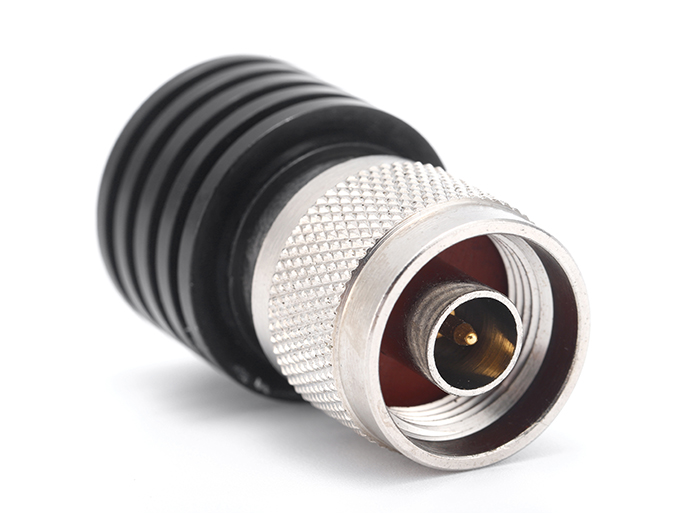

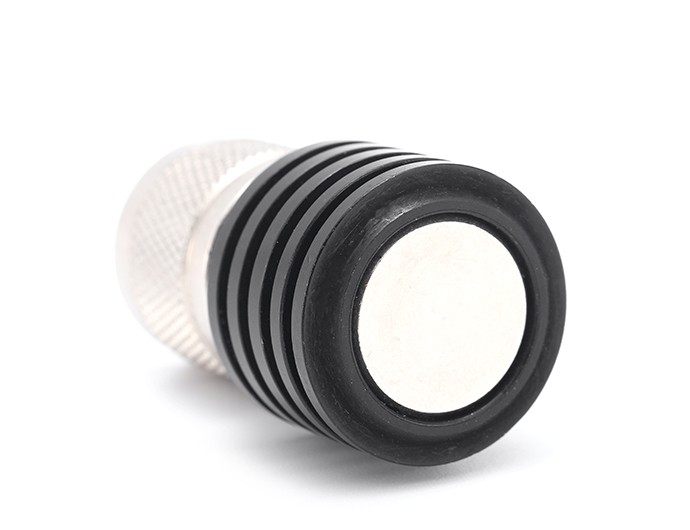

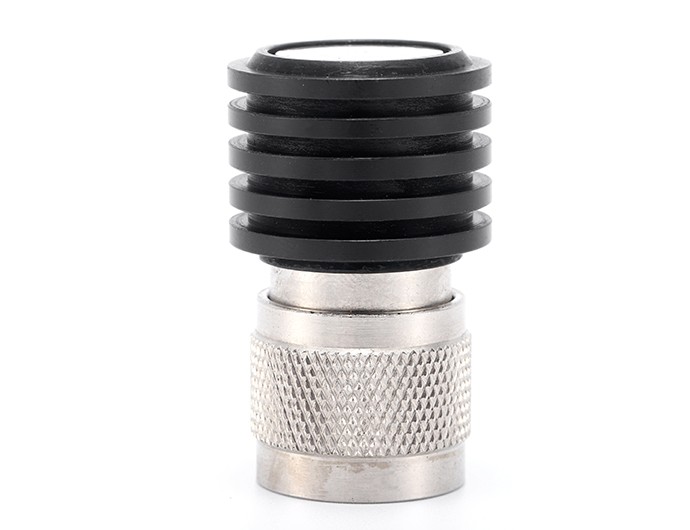

N male 5 Watts RF Termination
Model: N-50JR-5W
Product Introduction
The N coaxial terminations can be designed based on customer 's request ，with impendence of 50Ω or 75 Ω.They can be matached to any transmission line . We have two kinds of material , brass with gold plated or stainless steel.
Detailed Information
N male 5 Watts RF Termination
Teruilai P/N: N-50JR-5W Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dielectric withstanding voltage | ≧1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| VSWR | ≦1.20 | |
| Power | 5W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel-plated |
| Pin contacts | Bronze | gold-plated |
| Insulators | Teflon | |
