RF Coaxial Adapters · SSMA

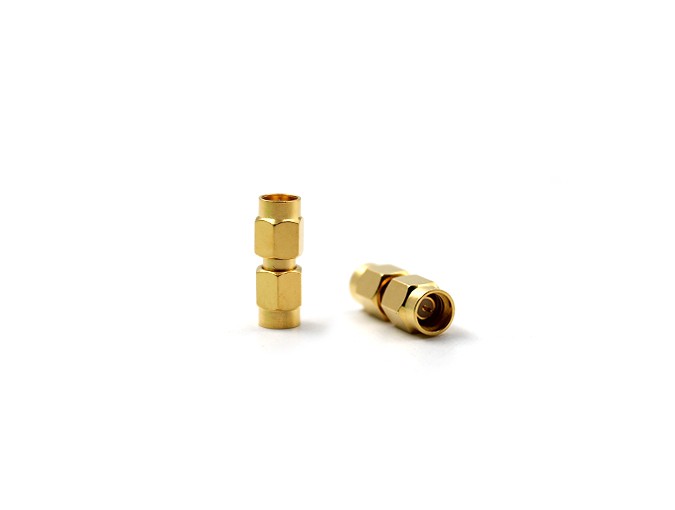

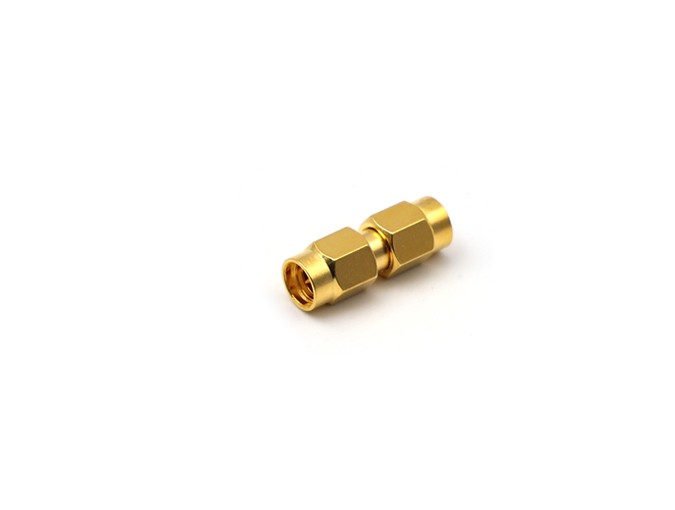

RF Adapter SSMA Male to Male
Model: SSMA-JJ
Product Introduction
This 50 Ohm SSMA adapter is precision manufactured to RF components industry specifications.
Detailed Information
RF Adapter SSMA Male to Male
Teruilai P/N:SSMA-JJ
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | ≦1.20 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -40℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Beryllium copper | Gold |
| Gasket | Silicon rubber | |
| Insulators | Teflon | |
