RF Coaxial Adapters · 4.3-10

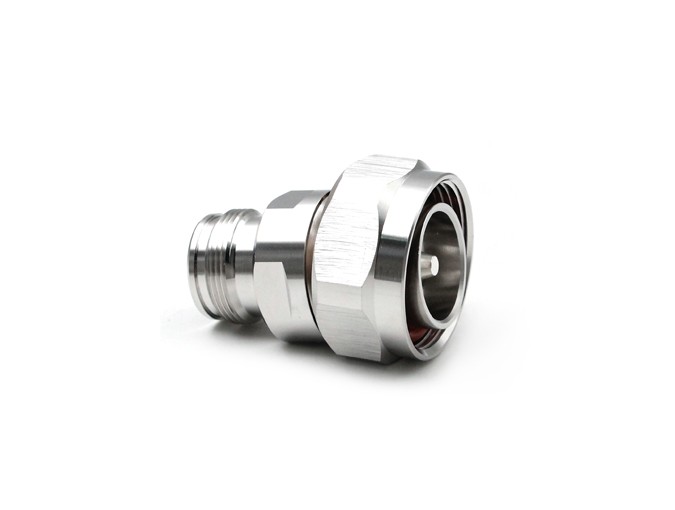

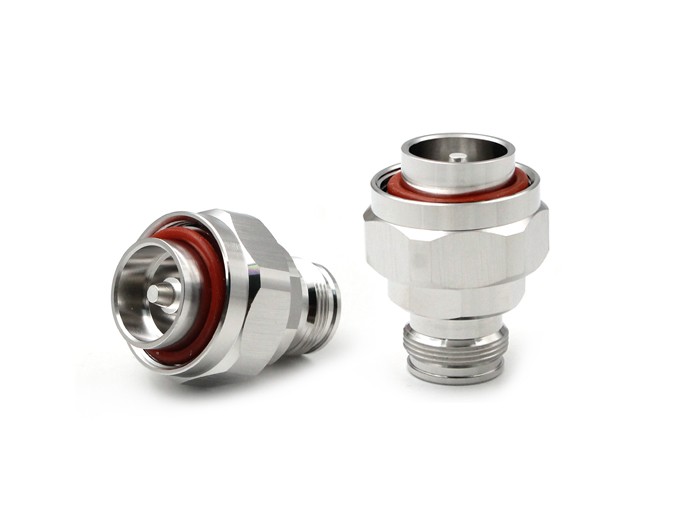

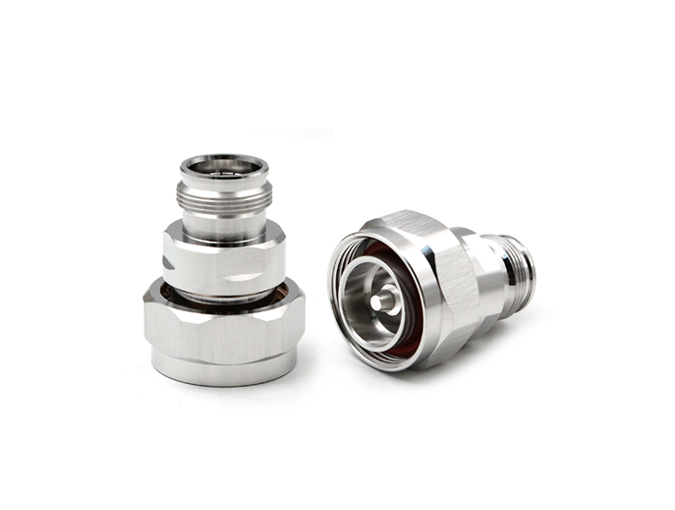

L29(7/16) male to 4310 Female dapter
Model: L29/4310-JK
Product Introduction
TYPE L29 is a one kind of coaxial connector with screw-coupling mechanism. The advantages has less attenutation, low intermodulation , big power and excellent nature of water-proof. They are widely used in communication systems and radio transceivers.
Detailed Information
L29(7/16) male to 4310 Female dapter
Teruilai P/N: L29/4310-JK
RoHS Certicate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-3GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧10000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦0.4mΩ | |
| .Outer conductor | ≦1.5mΩ | |
| VSWR | ≦1.2 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | Gold |
| Coupling nut | Brass | Nickel plated |
| Insulators | Teflon | |
