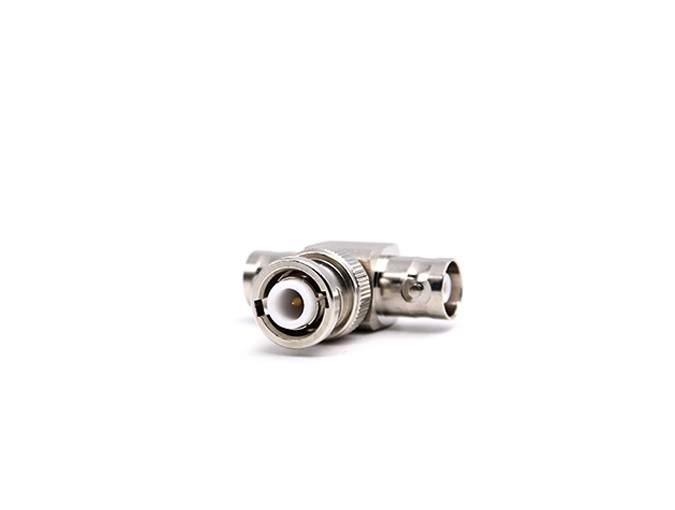

SHV Male to Female to Male RF Adapter (TERUILAI P/N: SHV-JKJ) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Ultra-high Voltage Withstanding Performance

• Dielectric withstanding voltage up to 5.0KV rms (50Hz) (varies depending on the matching cable)

• Ultra-high insulation resistance ≥1TΩ, ensuring excellent electrical insulation and safety under high-voltage conditions

• Specialized high-voltage insulation design to prevent breakdown and leakage current

2.2 Stable Electrical Transmission Performance

• Supports DC-300MHz operating frequency range, characteristic impedance of 50Ω

• Center conductor contact resistance ≤2mΩ, outer conductor contact resistance ≤1.5mΩ, achieving low-loss signal transmission

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.3 Extreme Environmental Adaptability & Durability

• Operating temperature range: -65℃ ~ +165℃, covering ultra-low and ultra-high temperature harsh working conditions

• Durability of ≥500 mating cycles, suitable for long-term repeated plugging and unplugging in industrial and testing scenarios

• High-quality plating provides strong oxidation and corrosion resistance

2.4 Convenient Interface Conversion

• Male-female-male three-end conversion structure, realizing flexible connection between different SHV interface devices

• Compact and sturdy design, easy to install and disassemble, suitable for space-constrained equipment integration
