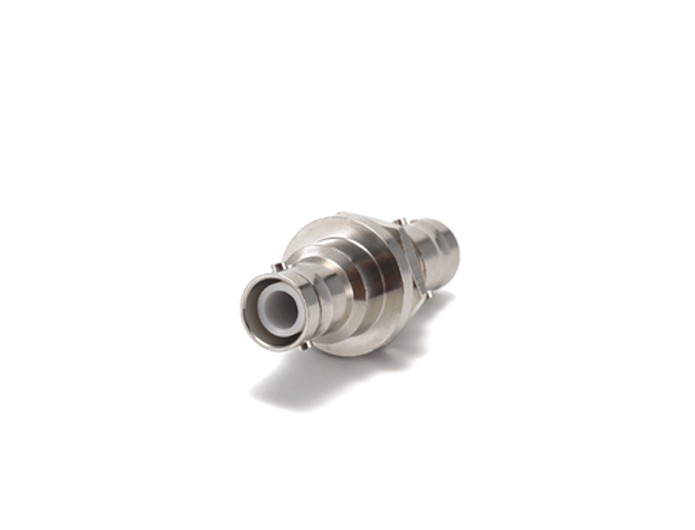

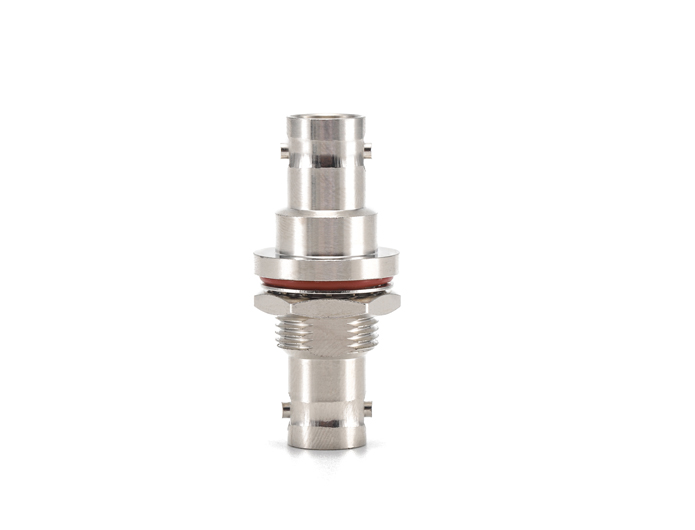

SHV Male to Male Bulkhead Mounted High Voltage RF Adapter (TERUILAI P/N: SHV-JYJ) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Superior High Voltage Withstanding Capability

• Rated for 5.0KV dielectric withstanding voltage, designed specifically for high-voltage RF signal transmission applications

• Maintains reliable insulation performance under both mated and unmatched connector conditions

• Ensures safe and stable operation in high-voltage working environments

2.2 Secure Bulkhead Panel Mount Design

• Bulkhead mounting structure enables fixed installation on equipment enclosures, panels or partition boards

• Realizes seamless and reliable high-voltage signal transmission between the inside and outside of equipment

• Provides excellent mechanical stability and prevents accidental disconnection under vibration conditions

2.3 Reliable Electrical Connection Performance

• Inner contact made of high-quality brass with gold plating for excellent electrical conductivity and corrosion resistance

• Outer contact made of brass with nickel plating for superior mechanical strength and oxidation resistance

• PTFE insulators provide excellent high-voltage insulation performance and chemical resistance

2.4 Stable Low-Frequency Transmission Performance

• Supports 0-0.3GHz (300MHz) operating frequency range, covering mainstream low-frequency high-voltage application bands

• Characteristic impedance of 50Ω ensures good impedance matching and minimal signal reflection

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.5 Excellent Durability & Environmental Adaptability

• Durability of ≥500 mating cycles, suitable for long-term repeated use in test and maintenance scenarios

• Operating temperature range: -45℃ ~ +85℃, adapting to various industrial and laboratory working conditions

• Robust one-piece construction ensures long-term mechanical and electrical stability
