RF Coaxial Adapters · MHV (High Voltage)

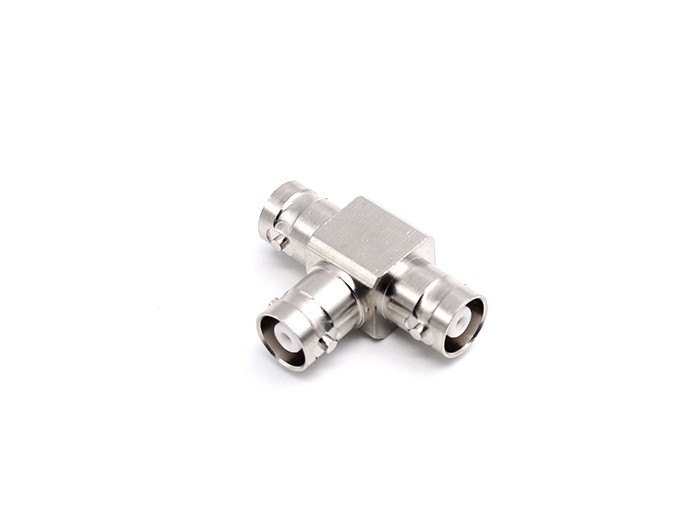

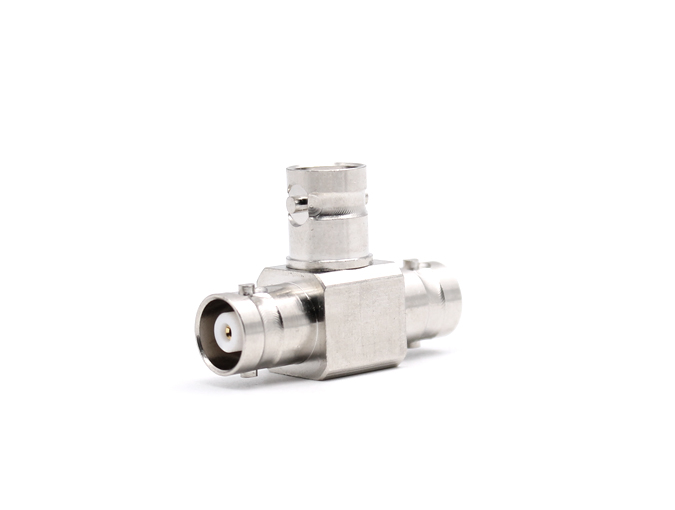

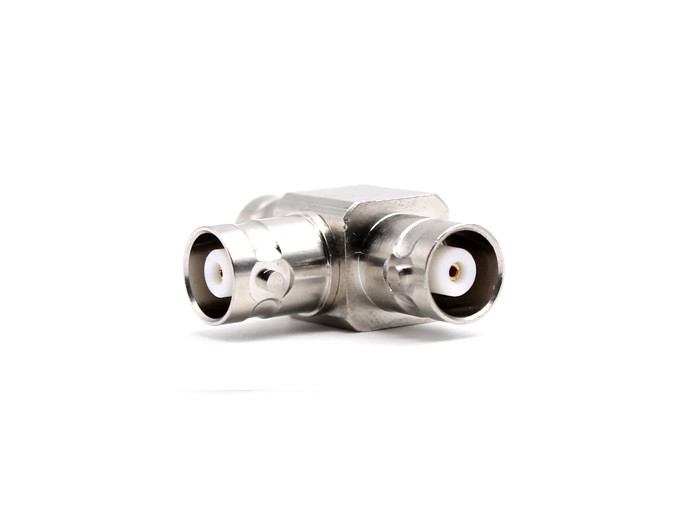

MHV Female to Female to Female RF adaptor
Model: MHV-KKK
Product Introduction
MHV is a miniature high voltage connector,3500v (RMS) test high voltage (paired) in the pairing case,working voltage 1.6kv (RMS) and applicable to 300MHZ.
Detailed Information
MHV Female to Female to Female RF adaptor
Teruilai P/N: MHV-KKK Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-300Mhz | |
| Dieletric withstanding voltage | 5.0KV rms,50Hz(depending on cable) | |
| Insulation Resistance | ≧1GΩ | |
| Characteristic impedance | 50Ω | |
| Contact resistance | ||
| Center conductor | ≦2mΩ | |
| Outer conductor | ≦1mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Pin Contact | Bronze | Gold |
| Insulators | PTFE | |
