RF Coaxial Adapters · MHV (High Voltage)

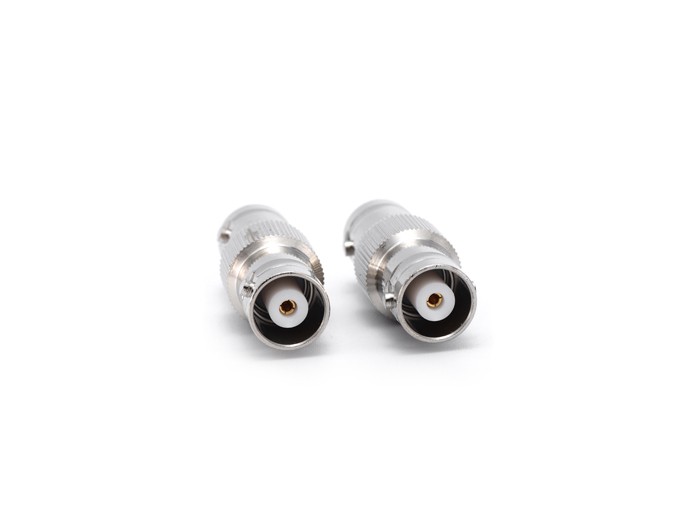

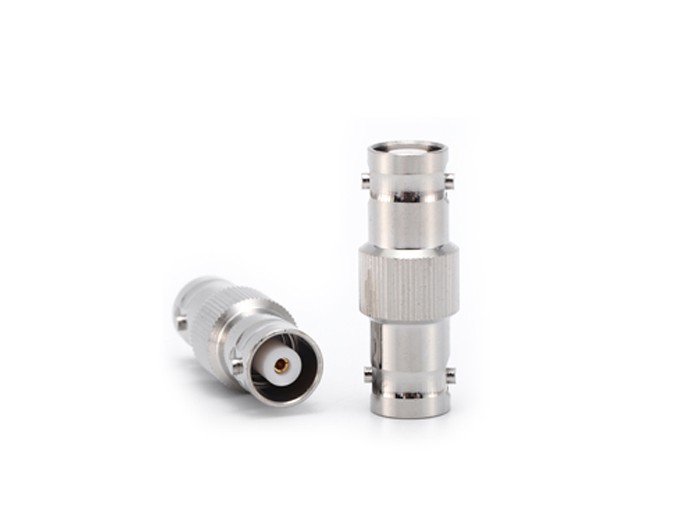

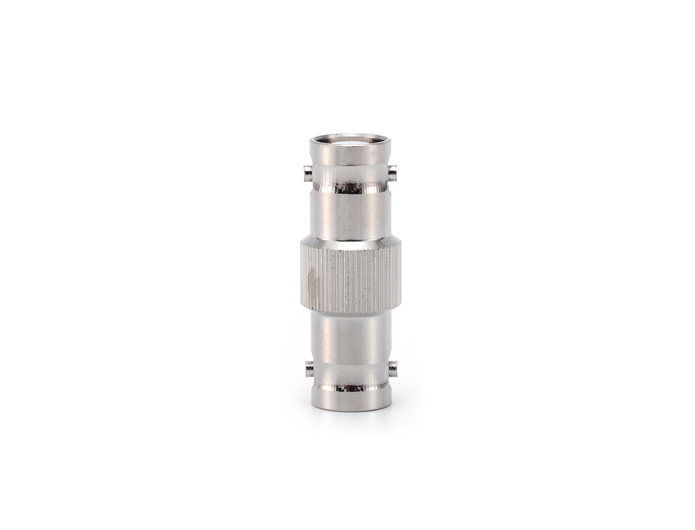

MHV Female to MHV Female RF Adapter
Model: MHV-KK
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
MHV Female to MHV Female RF Adapter
Teruilai P/N: MHV-KK Outline drawing.pdf
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-300MHz | |
| Dieletric withstanding voltage | 3KV rms, 50Hz(Depending on cable) | |
| Woking voltage(at sea level) | 1.6KV rms, 50Hz(Depending on cable) | |
| Insulation resistance | ≥5000-103MΩ | |
| Center contact resistance | ≤2MΩ | |
| Outer contact resistance | ≤1MΩ | |
| Corona extinction voltage | ≥300V rms, 50Hz(Depending on cable) | |
| Current rating continuous | ≤10A | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -45℃ - 125℃ | |
| RoHs Compliant | ||
| Durability | >500 cycles | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Insulators | Teflon | |
| Contact Pin | Bronze | Gold plated |
| Housing | Brass | Nickel plated |
