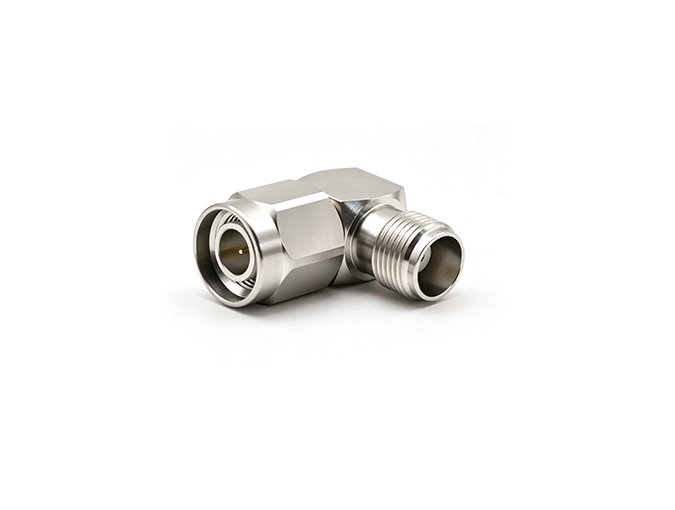

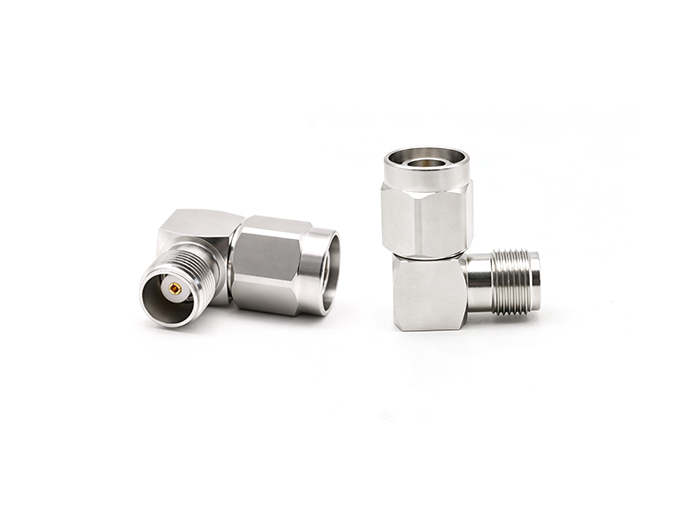

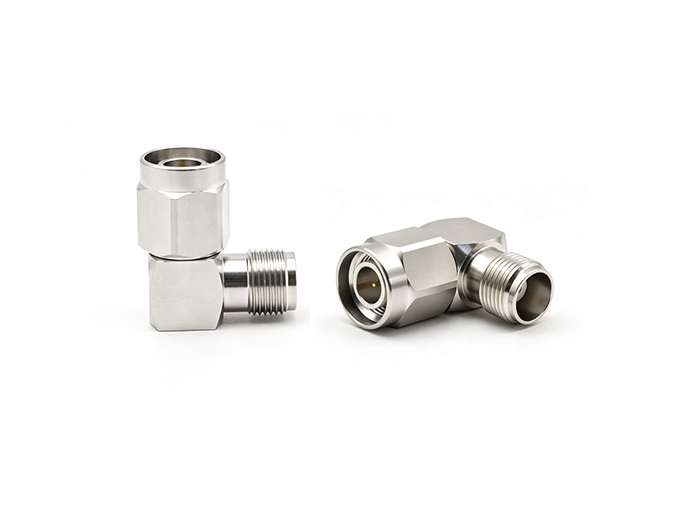

Precision Adapter TNC Male to Female R/A Adapto
Model: TNCA-JWKG
Product Introduction
TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 18GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.
Detailed Information
Precision Adapter TNC Male to Female R/A Adapto
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Dieletric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Insertion Loss(dB） | ≦0.05xSqt.（f_GHz） | |
| VSWR | ≦1.4 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Psssivated |
| Pin contacts | Brass | Gold Plated |
| Insulators | Teflon | |
| Coupling Nut | Stainless Steel | Passivated |
| Gasket | Silicone Rubber | |
