RF Coaxial Adapters · UHF

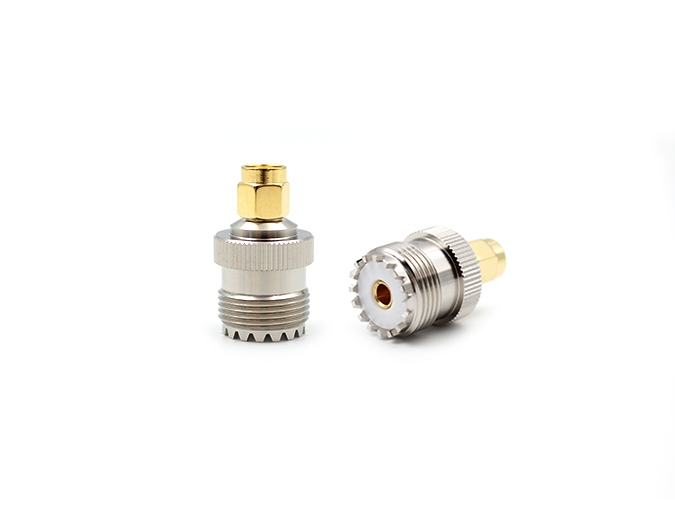

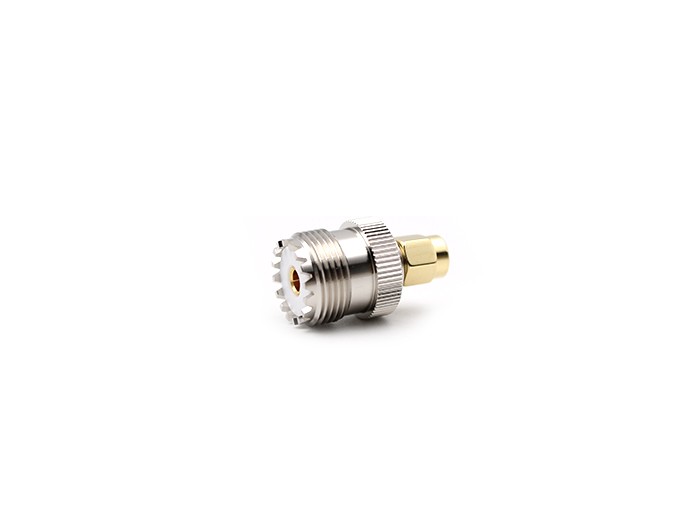

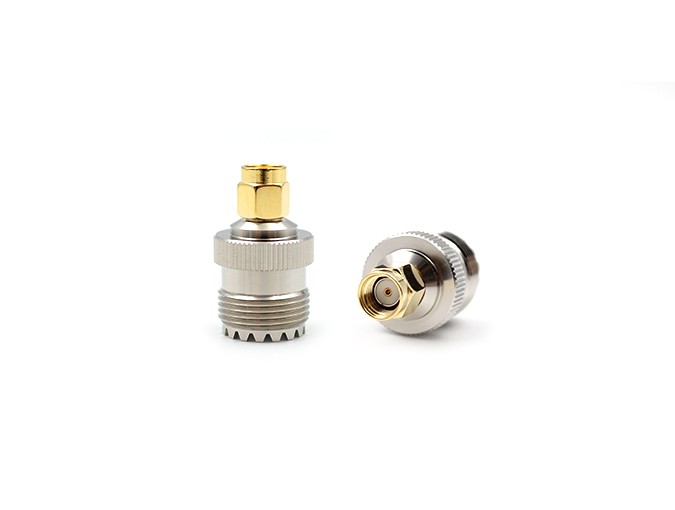

RF Adapter UHF Female to RPSMA Male
Model: UHF/RPSMA-KK
Product Introduction
Our SMA to UHF adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 300 MHz.
Detailed Information
RF Adapter UHF Female to RPSMA Male
Teruilai P/N : UHF/RPSMA-KK
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | ≧5000MΩ | |
| Dielectric strength | 2000V | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Contact Pin | Brass | Gold |
| Insulators | Teflon | |
