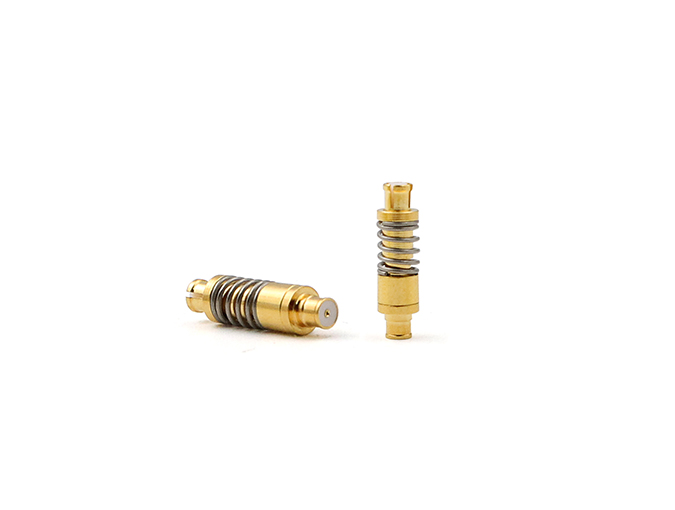

Smp female to female with spring
Model: SMP-KK69
Product Introduction
Detailed Information

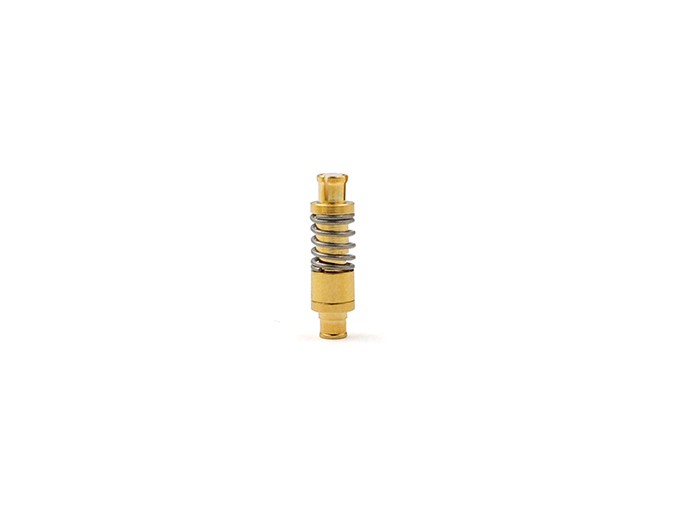

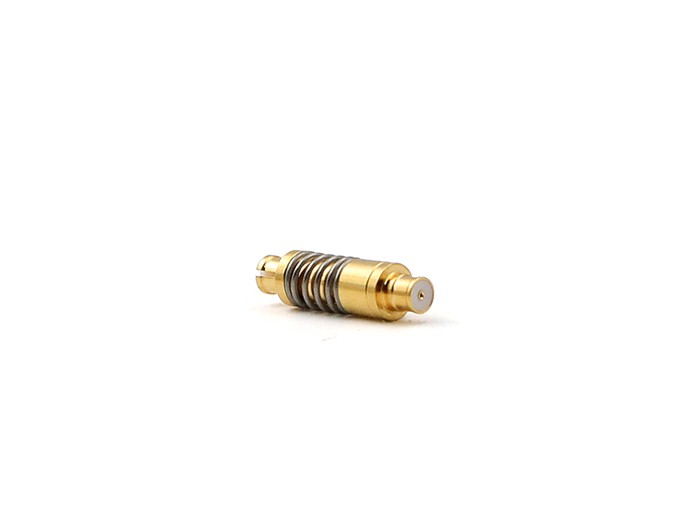

Smp female to female with spring
Teruilai P/N:SMP-KK69 Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | 1.20 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -55℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Beryllium copper | Gold |
| Spring | Beryllium copper | Gold |
| Insulators | PTFE | |
