RF Coaxial Adapters · BNC

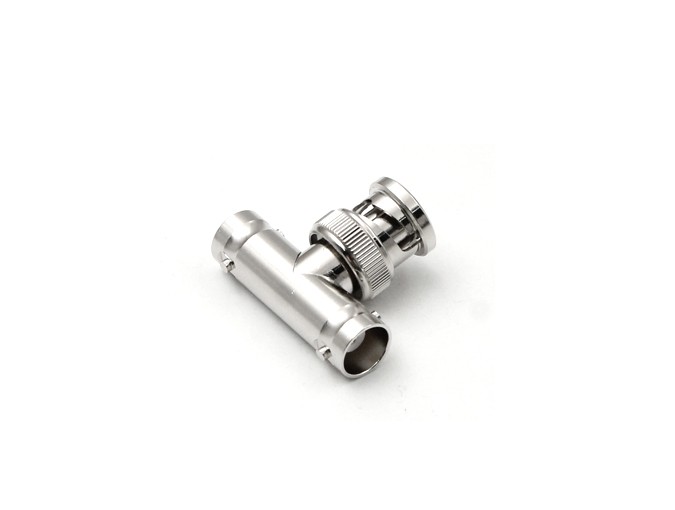

RF Adapters BNC Female to male to Female
Model: BNC-KJK
Product Introduction
BNC connector is one kind of bayonet coupling mechanism connector up to 4GHZ.. It has two versions, 50Ω and 75Ω .They are intermateable
Detailed Information

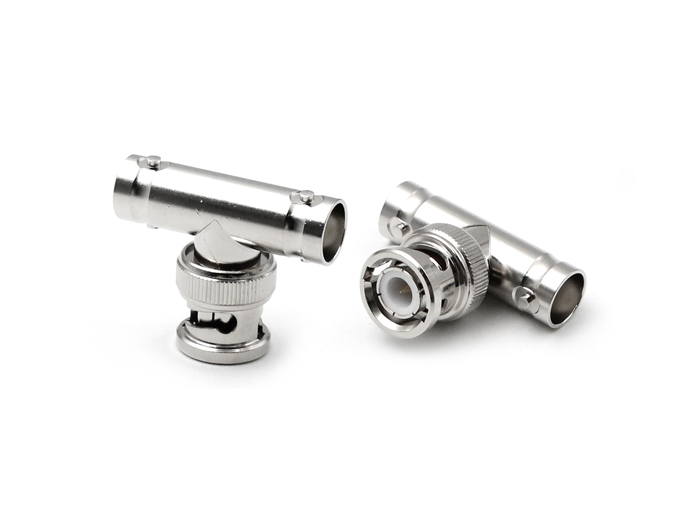

RF Adapters BNC Female to male to Female
Teruilai P/N: BNC-KJK
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | nickel-plated |
| Pin contacts | Phospher bronze | gold-plated |
| Insulators | Teflon | |
| Nut | Brass | nickel-plated |
| Washer | Phospher bronze | nickel-plated |
| Nut | Brass | nickel-plated |
