RF Coaxial Adapters · BNC

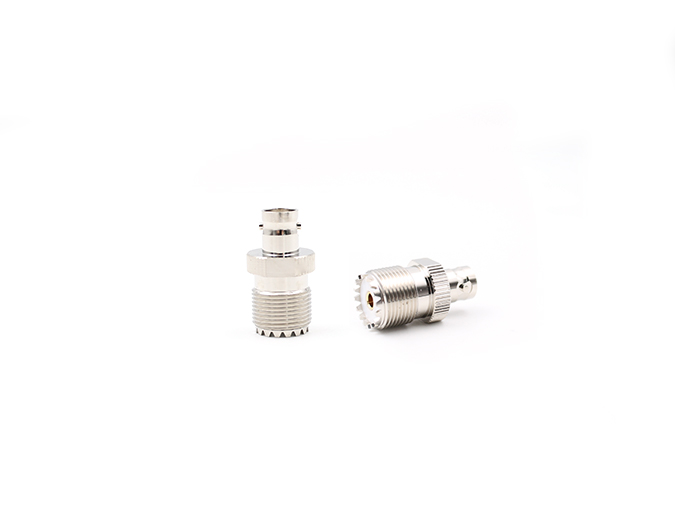

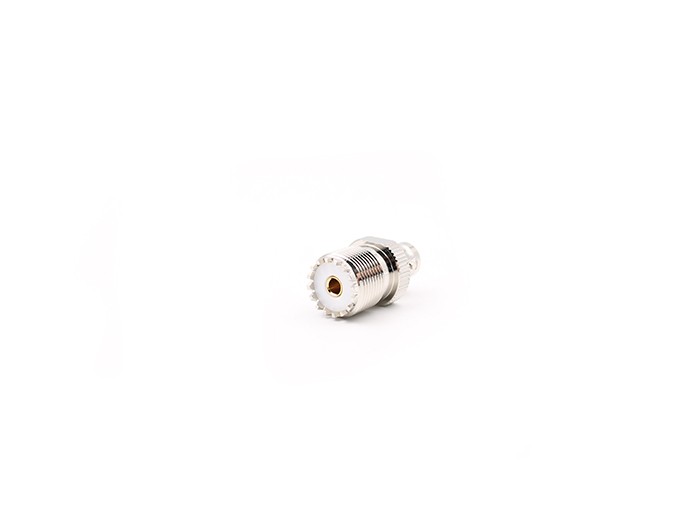

RF Adapter UHF Female to BNC Female
Model: UHF/BNC-KK
Product Introduction
Series UHF is a connector with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.
Detailed Information
RF Adapter UHF Female to BNC Female
Teruilai P/N : UHF/BNC-KK
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-4GHZ | |
| Insulation resistance | ≧5000MΩ | |
| Dielectric strength | 1500V | |
| Center Contact Resistance | ≦1.5MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Outer Contact | Brass | Nickel plated |
| Contact Pin | Brass | Gold |
| Coupling nut | Brass | Nickel plated |
| Insulators | Teflon | |
