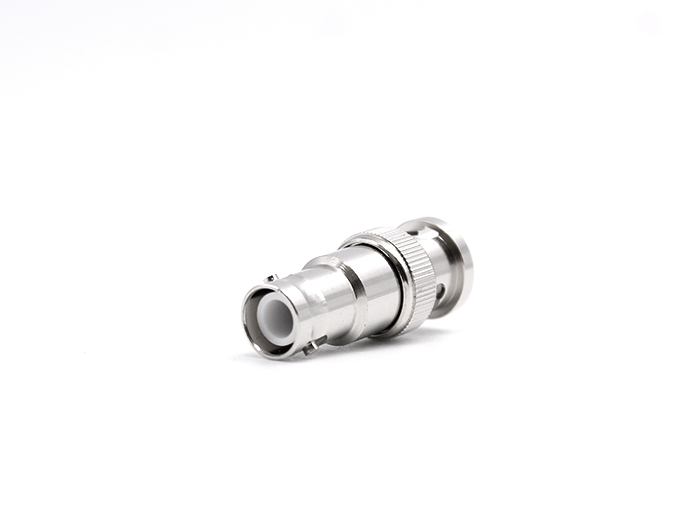

SHV Male to BNC Male RF Adapter
Model: SHV/BNC-JJ
Product Introduction
Series SHV is coaxial high voltage connector with 3.5KV (RMS) or 5KV DC. The connector is widely used in nuclear devices and test equipment . Voltage is suitable for matching mated or unmatched conditions.
Detailed Information
SHV Male to BNC Male RF Adapter
Teruilai P/N: SHV/BNC-JJ Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-300mhz | |
| Dieletric withstanding voltage | 1500V | |
| Insulation Resistance | ≧5000MΩ | |
| Characteristic impedance | 50Ω | |
| Contact resistance | ||
| Center conductor | ≦1.5mΩ | |
| Outer conductor | ≦1mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Nut | Copper | Nickel plated |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
