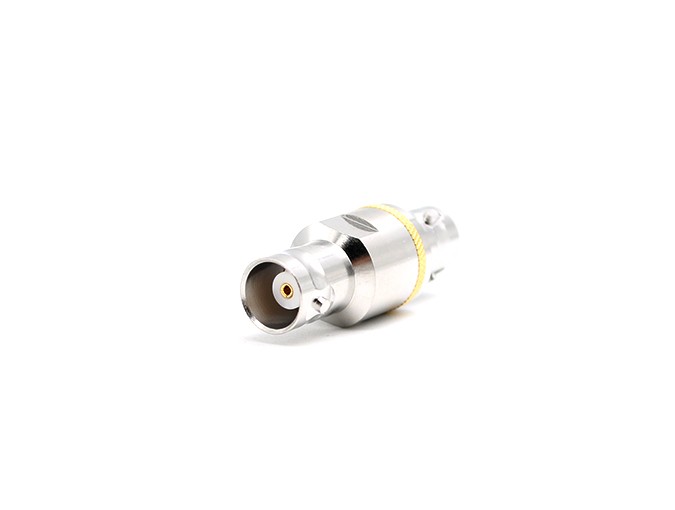

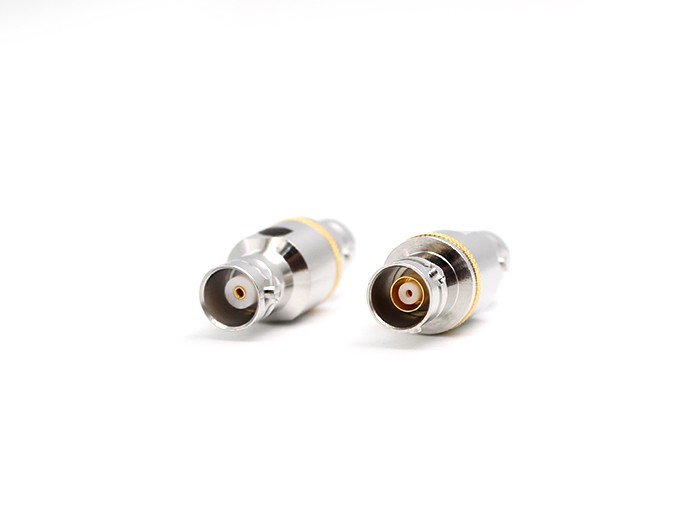

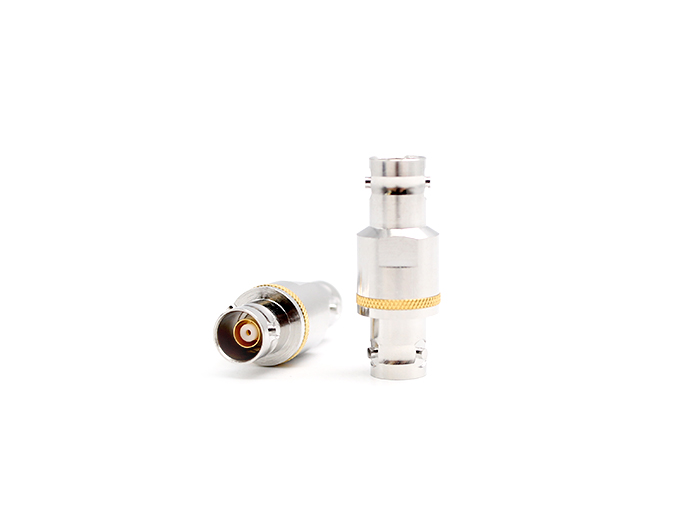

TRB Female to BNC Female RF Adapter (TERUILAI P/N: TRB/BNC-KK) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Industry-leading High Shielding Performance

• Inherits the core advantage of TRB series connectors with an optimized all-metal shielding structure

• Effectively blocks external electromagnetic interference and prevents internal signal leakage

• Ensures stable and reliable signal transmission in complex and harsh electromagnetic environments

2.2 Dual Bayonet Quick Connection Design

• Both TRB and BNC interfaces adopt bayonet coupling mechanisms for tool-free quick insertion and removal

• Significantly improves installation and maintenance efficiency, suitable for frequent operation scenarios

• Provides secure mechanical locking and stable electrical connection after engagement

2.3 Convenient Dual-Female Interface Conversion

• TRB female to BNC female straight-through conversion structure

• Realizes flexible connection between high-shielding TRB interface equipment and standard BNC interface devices

• Compact and sturdy design, easy to install and disassemble

2.4 High Electrical Reliability

• Dielectric withstanding voltage of 1200V, ensuring excellent electrical insulation performance

• Insulation resistance ≥5000MΩ (corrected from document typo "5000mΩ")

• Ultra-low outer conductor contact resistance ≤0.5mΩ, achieving minimal signal loss

2.5 Excellent Durability & Environmental Adaptability

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• Operating temperature range: -45℃ ~ +125℃, adapting to various industrial and military working environments

• High-quality Suco plating provides strong oxidation and corrosion resistance
