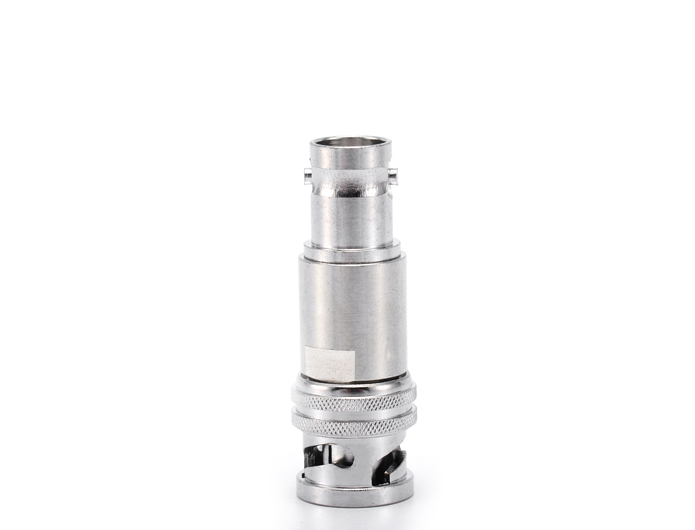

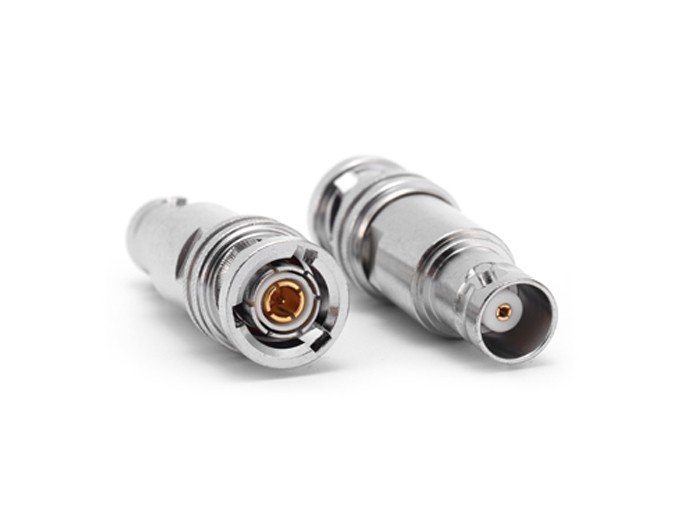

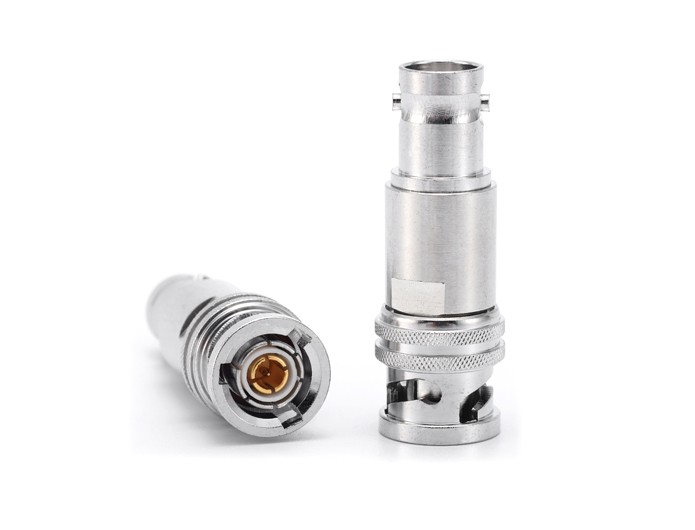

RF Adapter TRB Male to BNC Female
Model: TRB/BNC-JK
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
RF Adapter TRB Male to BNC Female
Teruilai P/N: TRB/BNC-JK Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-500Mhz | |
| Dieletric withstanding voltage | 1200V | |
| Characteristic impedance | non-constant | |
| Insulation Resistance | ≧5000mΩ | |
| Contact resistance | ||
| Inner conductor | ≧2 mΩ | |
| Outer conductor | ≦0.5milli Ω | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco-plated |
| Pin contacts | Bonze | Gold |
| Coupling nut | Brass | Suco-plated |
| Insulators | PTFE | |
