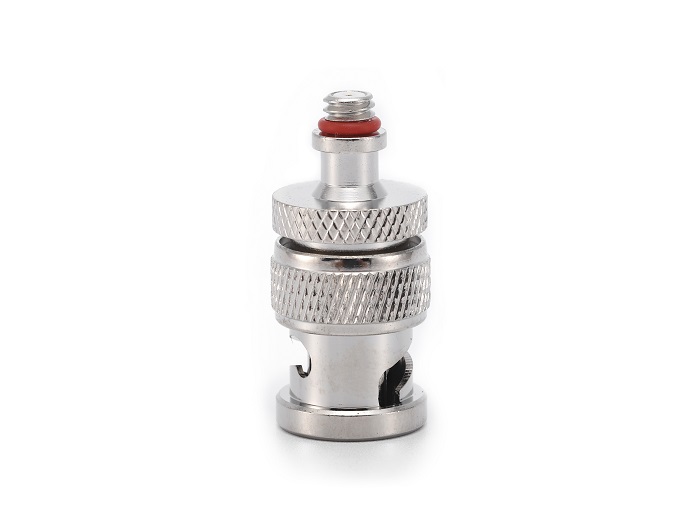

BNC male to 1032 female RF Coaxial Adapter
Model: BNC/1032-JK
Product Introduction
Precision adapters can reach the frequency up to DC 4 Ghz. They are the guarantee for the connection between different seriels of RF coaxial connectors ,widely used in the modem precision measurement and microwave communication equipment.
Detailed Information

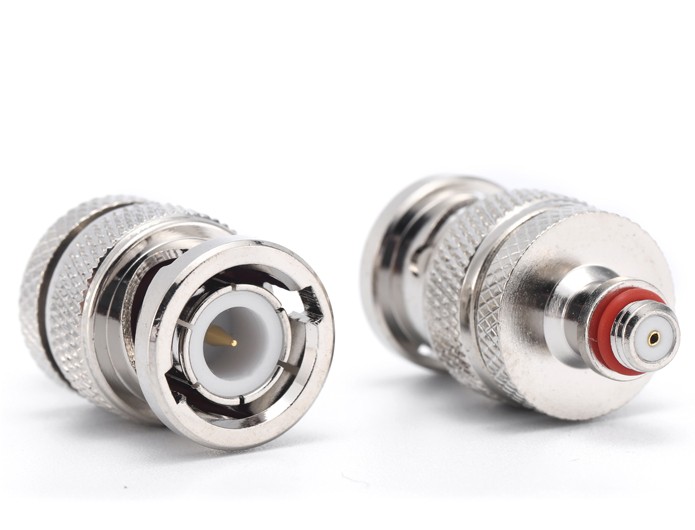

BNC male to 1032 female RF Coaxial Adapter
Teruilai P/N : BNC/1032-JK Datesheet
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel-plated |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | Teflon | |
