RF Coaxial Adapters · N

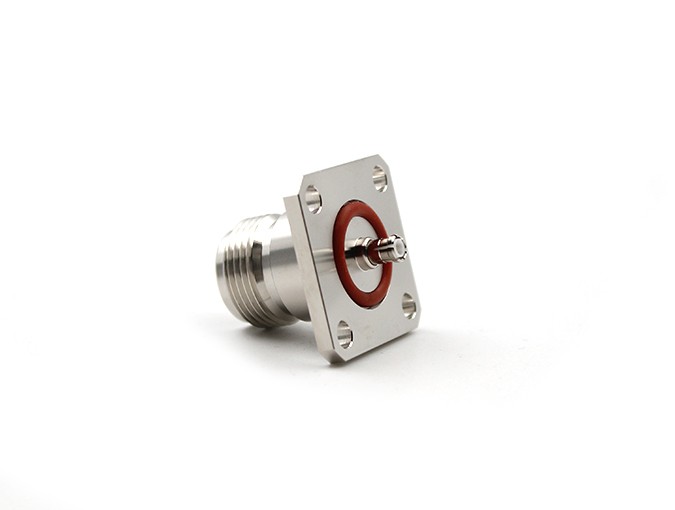

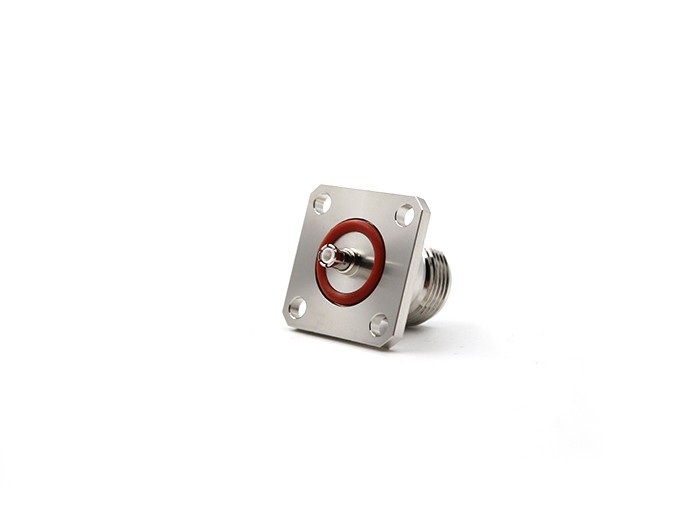

RF Adapter N Female to MCX Male Flange
Model: N/MCX-KFJ
Product Introduction
Type MCX is one kind of RF coaxial conectors with miniature snap-on coupling mechanism, which has the characteristics of light weight, small size, concise structure and easy to use, they are sure to fit most applications where space, weight, performance and easey to assembly are required in RF circuits of fixed communication instruments.
Detailed Information

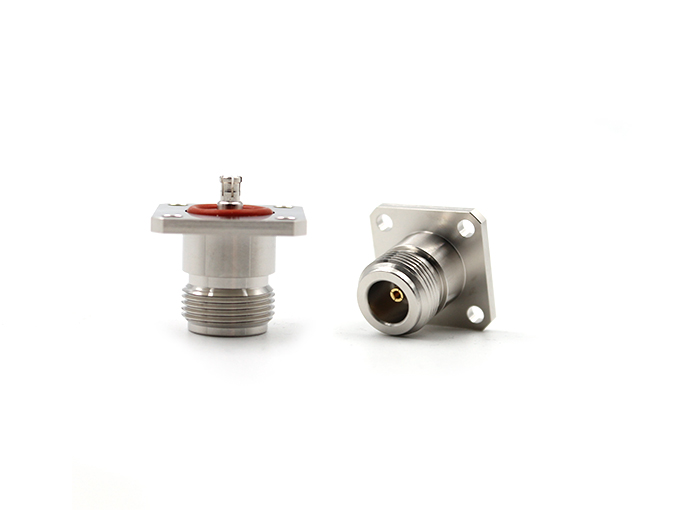

RF Adapter N Female to MCX Male Flange
Teruilai P/N: N/MCX-KFJ
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-6GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.0mΩ | |
| .Outer conductor | ≦1.0mΩ | |
| VSWR | ≦1.25 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ ~+165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Pin contacts | Bronze | Gold |
| Outer conductor | Brass | Nickel plated |
| Gaskets | Silicone rubber | |
| Insulators | PTFE | |
