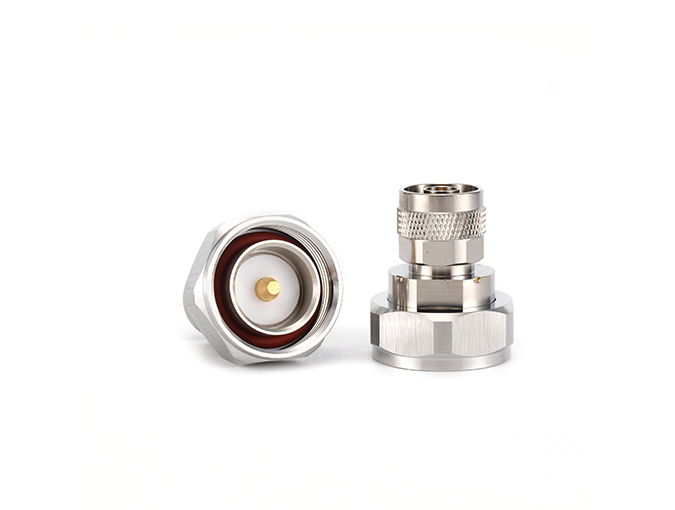

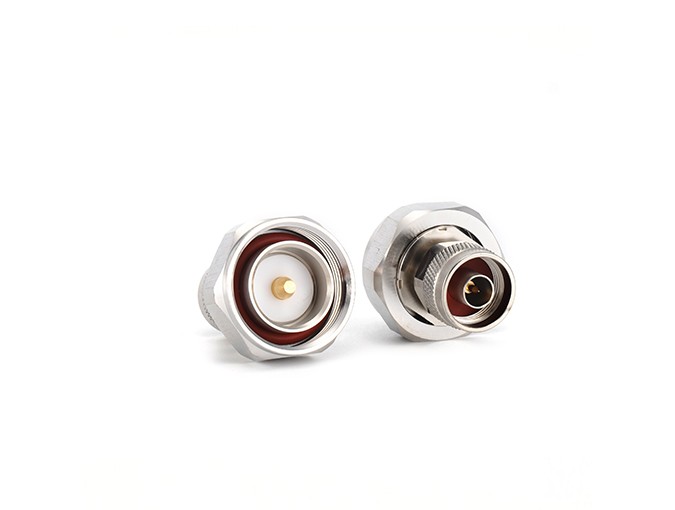

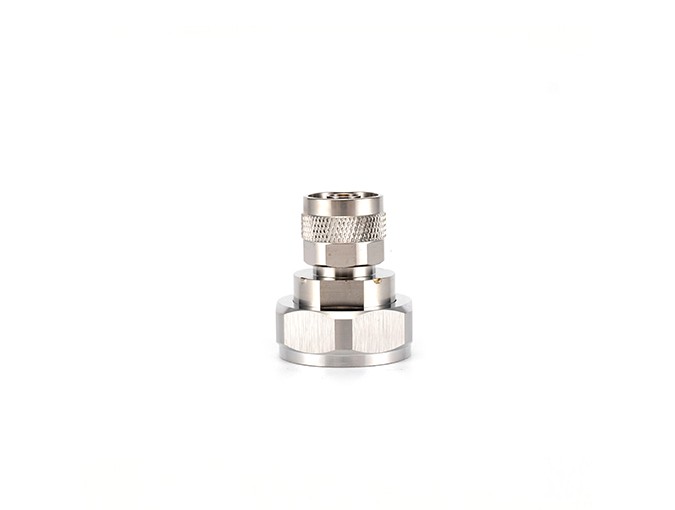

L29(7/16 DIN) Male to N Male RF Adapter (TERUILAI P/N: L29-N-JJ) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 High Power & Low Intermodulation Performance

• Exceptional high-power handling capability suitable for high-power RF transmission applications

• Superior low intermodulation characteristics ensure clean signal transmission in complex communication systems

• Low attenuation design minimizes signal loss across the entire operating frequency range

2.2 Excellent Waterproof Performance

• Integrated waterproof structure design provides reliable environmental protection

• Ideal for outdoor installation and harsh weather conditions

• Ensures long-term stable operation in outdoor communication infrastructure

2.3 Robust Screw-Coupling Mechanism

• Adopts a reliable screw-coupling mechanism, providing excellent vibration and shock resistance

• Ensures secure mechanical locking and stable electrical connection under severe operating conditions

• Suitable for fixed outdoor installation and industrial environments

2.4 Ultra-low Loss Electrical Performance

• Supports 0-3GHz operating frequency range with a characteristic impedance of 50Ω

• Voltage Standing Wave Ratio (VSWR) ≤1.20, ensuring excellent impedance matching

• Exceptionally low contact resistance: center conductor ≤0.4mΩ, outer conductor ≤1.5mΩ

• Ultra-high dielectric withstanding voltage ≥4000V and insulation resistance ≥10000MΩ, guaranteeing safe and reliable high-voltage operation

2.5 Durable & Reliable Construction

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• Operating temperature range: -40℃ ~ +70℃, adapting to various outdoor working environments

• High-quality Suco plating provides excellent corrosion and oxidation resistance
